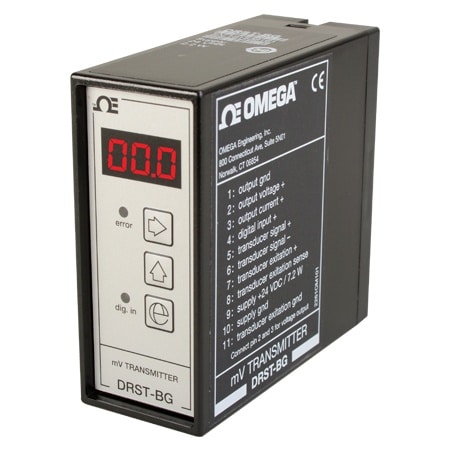

DwyerOmegaDRST-BG-Load-Cell-Cond
DRST-BG
- 가격
- 943,370 원
- VAT 10%
- 94,337 원
- 총 금액
- 1,037,707 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Approvals Note:EMC 2014/30/EU EAC: TR-CU 020/2011
Calibration Temperature, Max:28 °C
Calibration Temperature, Min:20 °C
Display Type:LED
EMC Standard:NAMUR NE 21
Electrical Output:0 to 20 mA
Enclosure Ratings:IP50
Height:80.5 mm
Input Range Note:Max. Offset: 70% of selec. max. value;Voltage input;Min. Measurement Range (Span): 10 mV;Overrange: 0 to 999% of selected measurement range;NPN, Digital Input: Pull up 24 Vdc / 6.9 mA;PNP, Digital Input: Pull down 0 Vdc/6.9 mA;Trig Level Low, NPN/PNP: < 6 Vdc;Trig Level High, NPN/PNP: > 10.5 Vdc;Pulse Length: > 30 ms
Input Type:Voltage
Length:84.5 mm
Linearity Error:< 0.1% of span
Load Resistance:230 mA Max;Current Output : 600 Ω
Mounting:DIN Rail Mount
Noise Calibration:>60 dB
Number of Inputs:1
Offset:Max Offset: 70 %
Operating Temperature, Max:60 °C
Operating Temperature, Min:-20 °C
Output Detail:Min. Signal Range: 5 mA Current Limit: < 23 mA Voltage Output Through Internal shunt: See manual for details Of Span: = of the presently selected range
Output Signal:Current
Output Value:Process
Power Consumption:7.2 W
Power Dissipation:2.2 W
Relative Humidity:<95% RH
Response Time:0.06 to 999 s
Signal Dynamics Input:17 bit
Signal Dynamics Output:16 bit
Stability:Load Stability: 0.01% of span/100 Ω
Supply Power Note:Effect of Supply Voltage Change: < ±0.002% of span/%V Supply: 5 to 13 Vdc
Supply Power Type:DC
Supply Voltage:19.2 to 28.8 Vdc
Temperature Coefficient:<±0.01% of span/°C
Update Rate:20 ms
Voltage Measurement Range:-40 to 100 mV dc
Weight:130 g
Width:35.5 mm
