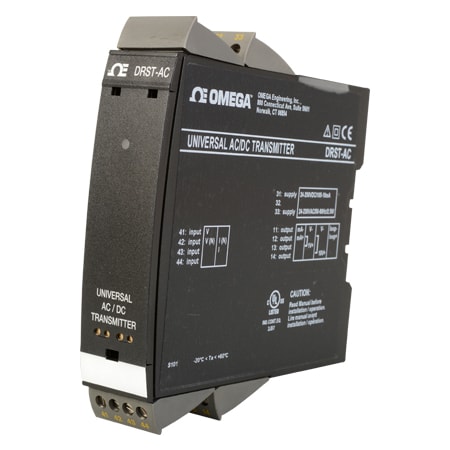

DwyerOmegaDRST-AC-Srs-Sig-Cond
DRST-AC
- 가격
- 533,470 원
- VAT 10%
- 53,347 원
- 총 금액
- 586,817 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.3 %
Accuracy Detail:Better than 0.3% of selected range*
Approvals:UL, RoHS
Approvals Note:EMC: 2014/30/EU, LVD: 2014/35/EU, RoHS: 2011/65/EU, UL: UL 508 / C22.2 no. 14, NB: For custom configurable signal ranges, general accuracy and EMC specifications are 0.3% of full sc
CMRR:0.02 ppm/VHz
Calibration Temperature, Max:28 °C
Calibration Temperature, Min:20 °C
Current Measurement Range:0 to 5 A
Display Type:Programmer
EMC Immunity Note:NAMUR NE 21, A Criterion, Burst: <±1% of span (span = selected input range)
EMC Standard:NAMUR NE 21
Electrical Output:0 to 23 mA
Enclosure Ratings:IP20
Height:109 mm
Input Range Note:Current Input:;Maximum Input Limit: 6.00 AAC @ 40°C;Programmable Measurement Ranges: 0 to 0.5; 0 to 1; 0 to 2.5 and 0 to 5 AAC;Custom Configurable Signal Range: 0 to 5 AAC/40 to 400 Hz;Min. Measurement Range (Span): 0.5 AAC;Input Resistance: Nom. < 0.07 Ω;Voltage Input:;Programmable Measurement Ranges:0 to 0.5, 0 to 1, 0 to 2.83, 0 to 5, 0 to 120, 0 to 230 and 0 to 300 Vac;Custom Configurable Signal Range: 0 to 300 Vac/40 to 400 Hz;Min. Measurement Range (Span): 0.5 Vac;Input Resistance: Nom. 3 MΩ
Input Type:AC Current , Voltage
Installation:Pollution degree 2 and measurement/overvoltage category II
Isolation:2.3 kVac
Length:104 mm
Load Resistance:Current Output: ≤ 800 Ω, Voltage Output: 500 kΩ
Mounting:DIN Rail 35 mm Standard, EN 60715
Noise Calibration:>60 dB
Number of Inputs:1
Operating Temperature, Max:60 °C
Operating Temperature, Min:-20 °C
Output Detail:Active Unipolar and Bipolar mA Output Programmable Ranges: 0 to 20, 4 to 20 and S4 to 20 mA Programmable Ranges: ±10 and ±20 mA Programmable Ranges: Direct or Inverted Action V-Curve Function, Active Signals, 100-0-100%: 20-0 to 20 mA Passive 2-Wire mA Output Programmable Ranges: 0 to 20 and 4 to 20 mA Programmable Ranges: Direct or Inverted action V-Curve Function, 100-0 to 100%: 20-0 to 20 mA External Loop Supply: 3.5 to 30 V Current Output Signal Range: -23 to +23 mA (bipolar) Current Limit: ≤ 28 mA (unipolar) Current Limit: ± 28 mA (bipolar) Voltage Output Programmable Signal Ranges: 0/0.2 to 1; 0/1 to 5 ; 0/2 to 10; 1 to 0.2/0; 5 to 1/0; 10 to 2/0 V Programmable Signal Ranges: ±1, ±5 and ±10 V Programmable Signal Ranges: Direct or Inverted Action V-Curve Function, 100-0-100%:1-0-1, 5-0-5 and 10-0-10 V
Output Signal:Current, Voltage
Output Value:Process
Power Consumption:max 1.8 W
Power Dissipation:≤ 2.5 W
Relative Humidity:<95% RH
Response Time:< 0.75 s
Response Time Note:Response Time (0...90%, 100...10%): < 0.75 s
Screw Terminal Torque:0.5 Nm
Signal Dynamics Input:20 bit
Signal Dynamics Output:18 bit
Stability:Load Stability: ≤0.01% of span/100 Ω
Supply Power Type:AC/DC
Supply Voltage:21.6 to 253 Vac, 19.2 to 300 Vdc
Vibration:IEC 60068-2-6
Vibration Note:2 to 13.2 Hz: ±1 mm;13.2 to 100 Hz: ±0.7 g
Voltage Measurement Range:0 to 300 Vac
Voltage Output Range:± 1 V, ± 5 V, ± 10 V
Weight:250 g
Width:23.5 mm
Wire Gauge:26 to 14 AWG
