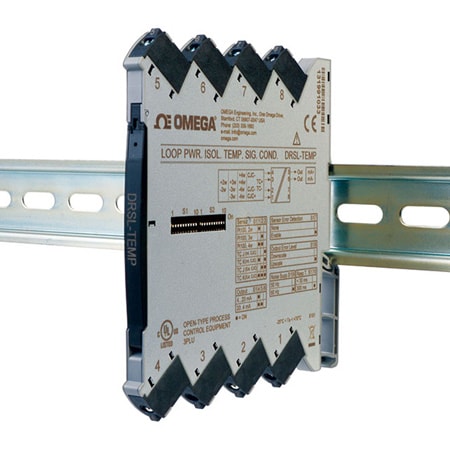

DwyerOmegaDRSL-TEMP-Sig-Cond

DRSL-TEMP

TEMP INPUT SIG COND CE

가격: 312,720 원

VAT 10%: 31,272 원

총 금액: 343,992 원

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Brand:OMEGA Engineering

Accuracy Detail:Thermocouple Input: Better than 0.5°C or ±0.05% of span (selected input range) RTD Input: Better than 0.1°C or ±0.05% of span (selected input range)

Approvals:CE, UL, RoHS

Calibration Temperature, Max:28 °C

Calibration Temperature, Min:20 °C

EMC Immunity Note:NAMUR NE 21, A Criterion, Burst: <±1% of span (span = selected input range)

EMC Standard:NAMUR NE 21

Electrical Output:4 to 20 mA

Enclosure Ratings:IP20

Height:113 mm

Input Range Note:THERMOCOUPLE INPUT ;Sensor and Cable Specifications:5 kΩ per wire;Cold Junction Compensation (CJC): Internal or external (selectable); CJC Accuracy via External CJC (Pt100 RTD Sensor): Better than ±0.15°C; CJC via Internally Mounted Sensor: Better than ±2.5°C;Open Thermocouple Detection: Yes (DIP switch selectable upscale or downscale);Pt100 RTD INPUT;Sensor Current, RTD: <150 µA;Sensor Cable Specifications:50 Ω per wire;Effect of Sensor Cable Resistance (3 or 4-Wire RTD): <0.002 Ω/Ω;Broken Sensor Detection: >800 Ω;Shorted Sensor Detection: <18 Ω

Input Type:Thermocouple, RTD

Installation:Pollution degree 2 and measurement/overvoltage category II

Isolation:300 Vac

Length:115 mm

Load Resistance:Resistance: ≤(Vsupply - 5.5)/0.023

Mounting:DIN Rail 35 mm Standard, EN 60715

Noise Calibration:>60 dB

Number of Inputs:2

Operating Temperature, Max:70 °C

Operating Temperature, Min:-25 °C

Output Detail:Programmable Signal Ranges:0 to 20 mA and 4 to 20 mA Range Limits (NAMUR NE43 Out of Range): Below 3.8 mA or above 20.5 mA Sensor Error Detection(Dip Switch Selectable forEnable or None): Below 3.5 mA or above 23 mA Incorrect DIP-Switch Setting Identification: Below 3.5 mA Output Error Level: DIP switch selectable for upscale or downscale

Output Signal:Current

Output Value:Process

Power Consumption:0.7 W

RTD Accuracy:± 0.05 %

Relative Humidity:0 to 95% RH (non-condensing)

Response Time:< 30 ms

Response Time Note:Response Time (0 to 90%, 100 to 10%): <30 ms/300 ms (selectable, provides either fast response or signal dampening as needed)

Screw Terminal Torque:0.5 Nm

Stability:Load Stability: ≤0.01% of span/100 Ω

Storage Temperature, Max:85 °C

Storage Temperature, Min:-40 °C

Supply Power Type:DC

Supply Voltage:5.5 to 35 Vdc

Temperature Coefficient:Thermocouple : ≤±0.1°C/°C or ≤±0.01%/°C; RTD : ≤±0.02 °C/°C

Temperature Measurement Range:J: -100 to 1200°C, K: -180 to 1372°C, Pt100: -200 to 850°C

Thermocouple Accuracy:± 0.05 %

Voltage Loss:5.5 Vdc

Weight:70 g

Width:6.1 mm

Wire Code Option:2 -, 3 - , 4- Wire

Wire Gauge:26 to 12 AWG
