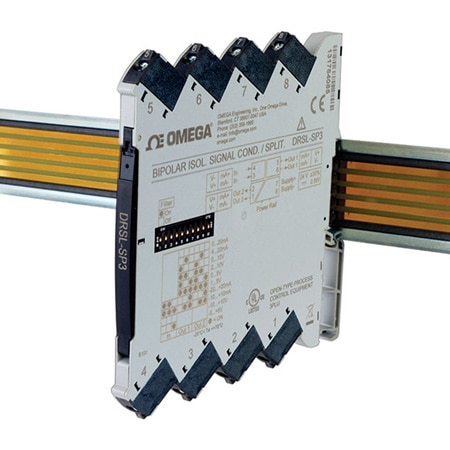

DwyerOmegaDRSL-SP3-Rptr-Spltr-BP
DRSL-SP3
- 가격
- 519,910 원
- VAT 10%
- 51,991 원
- 총 금액
- 571,901 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.05 %
Additional Features 1:Bipolar
Approvals:CE, UL, RoHS
Bandwidth:100 Hz or 10 Hz (selectable via DIP-switch)
Calibration Temperature, Max:28 °C
Calibration Temperature, Min:20 °C
Current Measurement Range:± 20 mA
EMC Immunity Note:Extended EMC Immunity NAMUR NE 21, A Criterion, Burst: <±1% of span
EMC Standard:NAMUR NE 21
Electrical Output:0 to 23 mA
Enclosure Ratings:IP20
Height:113 mm
Input Range Note:Current Input:;Current Input: -23 to 23 mA; Input Voltage Drop: <1V @ 23 mA;Voltage Input:; Functional Range: -11.5 to 11.5V; Input Resistance: ≥1 MΩ
Input Type:Voltage, Current
Installation:Pollution degree 2 and measurement/overvoltage category II
Isolation:Isolation: Input/output 1/output 2/supply;Isolation Voltage (Test): 2.5 kVac;Isolation Voltage (Working):300 Vac
Length:115 mm
MTBF:187 yrs
Mounting:DIN Rail 35 mm Standard, EN 60715
Noise Calibration:>60 dB
Number of Inputs:2
Operating Temperature, Max:70 °C
Operating Temperature, Min:-25 °C
Output Detail:Current Output Programmable Signal Ranges:0 to 20 mA, 4 to 20 mA, ±10 mA,±20 mA Functional Range: 0 to 23 mA Current Limit: ≤28 mA Voltage Output: Programmable Signal Ranges:0 to 10V, 2 to 10V, 0 to 5V, 1 to 5V Functional Range: 0 to 11.5V
Output Signal:Current, Voltage
Output Value:Splitter
Power Consumption:0.8 W, Internal - max 0.65 W
Relative Humidity:0 to 95% RH (non-condensing)
Response Time:< 7 ms
Response Time Note:Response Time (0 to 90%, 100 to 10%): <7 ms or <44 ms
Screw Terminal Torque:0.5 Nm
Span, Max:Corresponds to the presently selected DIP switch output range
Stability:Load Stability: ≤0.002% of span/100 Ω
Storage Temperature, Max:85 °C
Storage Temperature, Min:-40 °C
Supply Power Note:16.8 to 31.2 Vdc via power rail or connectors
Supply Power Type:DC
Supply Voltage:16.8 to 31.2 Vdc
Temperature Coefficient:<±0.01% of span/°C
Voltage Loss:<1 V
Voltage Measurement Range:±10Vdc
Voltage Output Range:0 to 10 Vdc
Weight:70 g
Width:6.1 mm
Wire Gauge:26 to 12 AWG
