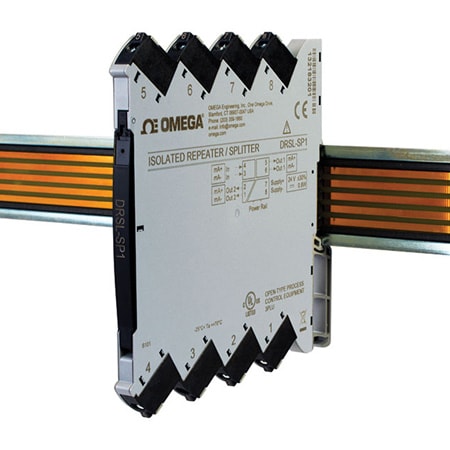

DwyerOmegaDRSL-SP1-Rptr-Spltr
DRSL-SP1
- 가격
- 422,690 원
- VAT 10%
- 42,269 원
- 총 금액
- 464,959 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.05 %
Additional Features 1:Repeater/Splitter
Approvals:CE, UL, RoHS
Calibration Temperature, Max:28 °C
Calibration Temperature, Min:20 °C
Current Measurement Range:0 to 20.5 mA
EMC Immunity Note:Extended EMC Immunity NAMUR NE 21, A Criterion, Burst: <±1% of span
EMC Standard:NAMUR NE 21
Electrical Output:0 to 20.5 mA
Enclosure Ratings:IP20
Height:113 mm
Input Range Note:Functional Range: 0 to 23 mA; Input Voltage Drop: <1.5 Vdc
Input Type:Current
Installation:Pollution degree 2 and measurement/overvoltage category II
Isolation:Isolation: Input/output 1/output 2/supply;Isolation Voltage (Test): 2.5 kVac;Isolation Voltage (Working):300 Vac
Length:115 mm
Load Resistance:Current Output: 23 mA/600 Ω max
Mounting:DIN Rail 35 mm Standard, EN 60715
Noise Calibration:>60 dB
Number of Inputs:1
Operating Temperature, Max:70 °C
Operating Temperature, Min:-25 °C
Output Detail:Signal Range: 0 to 20.5 mA (span) Current Limit: ≤28 mA
Output Signal:Current
Output Value:Splitter
Power Consumption:0.8 W, Internal - max 0.65 W
Relative Humidity:0 to 95% RH (non-condensing)
Response Time:< 7 ms
Response Time Note:Response Time (0 to 90%, 100 to 10%): <7 ms
Screw Terminal Torque:0.5 Nm
Stability:Load Stability: ≤0.01% of span/100 Ω
Storage Temperature, Max:85 °C
Storage Temperature, Min:-40 °C
Supply Power Note:16.8 to 31.2 Vdc via power rail or connectors
Supply Power Type:DC
Supply Voltage:16.8 to 31.2 Vdc
Temperature Coefficient:<±0.01% of span/°C
Voltage Loss:<1.5 V
Weight:70 g
Width:6.1 mm
Wire Gauge:26 to 12 AWG
