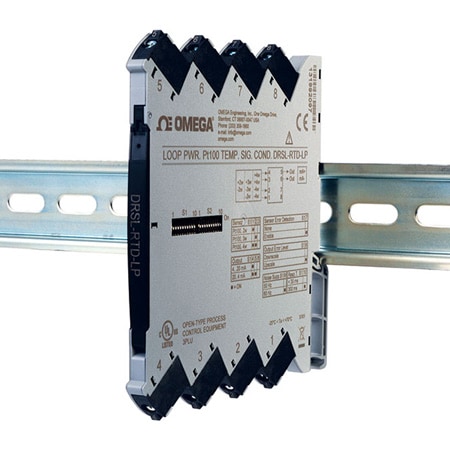

DwyerOmegaDRSL-RTD-LP-Sig-Cond

DRSL-RTD-LP

RTD INPUT SIG COND LP CE

가격: 223,290 원

VAT 10%: 22,329 원

총 금액: 245,619 원

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Brand:OMEGA Engineering

Accuracy:± 0.1 %

Accuracy Detail:Better than 0.2°C or ±0.1% of selected range

Approvals:CE, UL, RoHS

Calibration Temperature, Max:28 °C

Calibration Temperature, Min:20 °C

EMC Immunity Note:NAMUR NE 21, A Criterion, Burst: <±1% of span (span = selected input range)

EMC Standard:NAMUR NE 21

Electrical Output:0 to 20 mA, 4 to 20 mA

Enclosure Ratings:IP20

Height:113 mm

Input Range Note:Sensor Current, RTD: <150 µA;Sensor Cable Specifications: 50Ωper wire or 50 nF;Effect of Sensor Cable Resistance (3 or 4-Wire RTD): <0.002Ω/Ω;Broken Sensor Detection: >800Ω;Shorted Sensor Detection: <18Ω;

Input Type:RTD

Installation:Pollution degree 2 and measurement/overvoltage category II

Length:115 mm

Mounting:DIN Rail 35 mm Standard, EN 60715

Noise Calibration:>60 dB

Number of Inputs:1

Operating Temperature, Max:70 °C

Operating Temperature, Min:-25 °C

Output Detail:Range Limits (NAMUR NE43Out of Range): Below 3.8 mA or above 20.5 mA Sensor Error Detection(Dip Switch Selectable for Enableor None): Below 3.5 mA or above23 mA Incorrect DIP-Switch Setting Identification: Below 3.5 mAor above 23 mA Output Error Level: DIP switch selectable for upscale or downscale Load Resistance (Ω): ≤(Vsupply -3.3)/0.023

Output Signal:Current

Output Value:Process

Power Consumption:1 W, Internal - 0.65 W

Relative Humidity:0 to 95% RH (non-condensing)

Response Time:< 30 ms

Response Time Note:Response Time (0 to 90%, 100 to 10%): <30 ms/300 ms (selectable, provides either fast response or signal dampening as needed)

Screw Terminal Torque:0.5 Nm

Stability:Load Stability: ≤0.01% of span/100 Ω

Storage Temperature, Max:85 °C

Storage Temperature, Min:-40 °C

Supply Voltage:3.3 to 35 Vdc

Temperature Coefficient:≤±0.02°C/°C

Voltage Loss:3.3 Vdc

Weight:70 g

Width:6.1 mm

Wire Code Option:2 -, 3 - , 4- Wire

Wire Gauge:26 to 13 AWG
