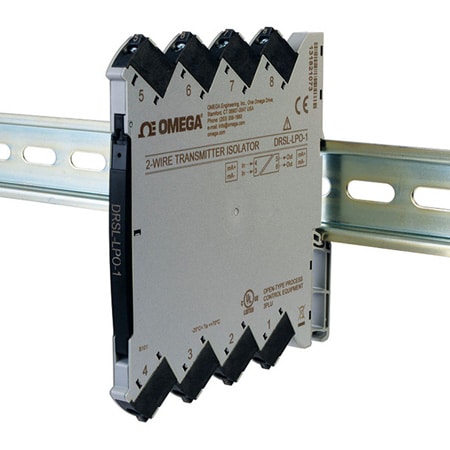

DwyerOmegaDRSL-LPO-Srs-Loop-Pwr-Iso
DRSL-LPO-1
- 가격
- 303,540 원
- VAT 10%
- 30,354 원
- 총 금액
- 333,894 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 8 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:±8 µA
Approvals:CE, UL, RoHS
Bandwidth:100 Hz
Calibration Temperature, Max:28 °C
Calibration Temperature, Min:20 °C
Conversion Rate:1:1
Current Measurement Range:4 to 20 mA
EMC Immunity Note:Extended EMC Immunity NAMUR NE 21, A Criterion, Burst: <±1% of span
EMC Standard:NAMUR NE 21
Electrical Output:24 mA
Enclosure Ratings:IP20
Height:113 mm
Input Range Note:Signal Range (Input to Output):3.8 to 20.5 mA;Signal Conversion: 1:1; Functional Range: 3.5 to 23 mA ;(NAMUR NE43 compliant);Available 2-Wire Transmitter (Tx) ;Supply: 3.5 to 32.5V
Input Type:Current
Installation:Pollution degree 2 and measurement/overvoltage category II
Isolation:Isolation Voltage (Test): 2.5 kVac ;Isolation Voltage (Working):300 Vac
Length:115 mm
Mounting:DIN Rail 35 mm Standard, EN 60715
Noise Calibration:>60 dB
Number of Inputs:1
Operating Temperature, Max:70 °C
Operating Temperature, Min:-25 °C
Output Detail:Output Loop Current Limitation:24 mA typical Output Overload: 50 mA max
Output Signal:Current
Output Value:Process
Power Consumption:50 mW
Relative Humidity:0 to 95% RH (non-condensing)
Response Time:< 5 ms
Response Time Note:Response Time (0 to 90%, 100 to 10%): <5 ms
Screw Terminal Torque:0.5 Nm
Storage Temperature, Max:85 °C
Storage Temperature, Min:-40 °C
Supply Power Type:DC
Supply Voltage:6 to 35 Vdc
Temperature Coefficient:≤±0.02 µA [(T-25°C) x Vsupply]
Temperature Coefficient Note:Temperature Coefficient (>25°C):≤±0.02 µA [(T-25°C) x Vsupply] Temperature Coefficient (<25°C):≤±0.07 µA [(T-25°C) x Vsupply]
Voltage Loss:Input to Output: 2.5 V
Weight:70 g
Width:6.1 mm
Wire Gauge:26 to 12 AWG
