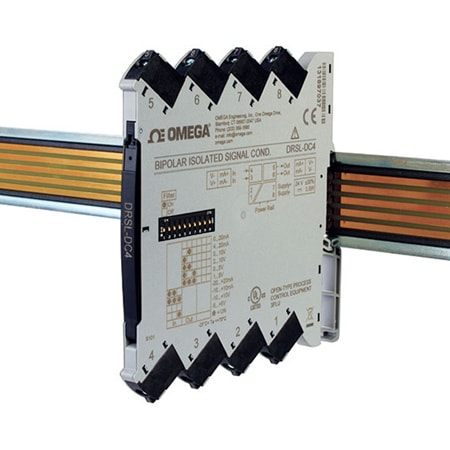

DwyerOmegaDRSL-DC4-Bipolar-Sig-Cond

DRSL-DC4

가격: 427,890 원

VAT 10%: 42,789 원

총 금액: 470,679 원

수량

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

실시간 문의하기

제품 사양

Brand:OMEGA Engineering

Accuracy:± 0.05 %

Approvals:CE, UL, RoHS

Bandwidth:>100 Hz or 10 Hz (Selectable Via DIP-Switch)

Calibration Temperature, Max:28 °C

Calibration Temperature, Min:20 °C

Current Measurement Range:± 20 mA

EMC Immunity Note:Extended EMC Immunity NAMUR NE 21, A Criterion, Burst: <±1% of span

EMC Standard:NAMUR NE 21

Electrical Output:0 to 23 mA

Enclosure Ratings:IP20

Height:113 mm

Input Range Note:Current Input; Programmable Measurement Ranges:±10 mA, ±20 mA; Functional Range, Current Input: -23 to 23 mA;Input Voltage Drop: <1V @ 23 mA;Voltage Input; Programmable Ranges: ±5V, ±10V;Functional Range: -11.5 to 11.5V;Input Resistance: ≥1 MΩ

Input Type:Voltage, Current

Installation:Pollution degree 2 and measurement/overvoltage category II

Isolation:300 Vac

Length:115 mm

Load Resistance:Current Output: 23 mA/600 Ω max, Voltage Output:>10 kΩ min

MTBF:241 yrs

Mounting:DIN Rail 35 mm Standard, EN 60715

Noise Calibration:>60 dB

Number of Inputs:2

Operating Temperature, Max:70 °C

Operating Temperature, Min:-25 °C

Output Detail:Current Output Programmable Signal Ranges:0 to 20 mA, 4 to 20 mA Functional Range: 0 to 23 mA Current Limit: ≤28 mA Voltage Output Programmable Signal Ranges:0 to 10V, 2 to 10V, 0 to 5V, 1 to 5V Functional Range: 0 to 11.5V

Output Signal:Current, Voltage

Output Value:Process

Power Consumption:0.8 W, Internal - max 0.65 W

Relative Humidity:0 to 95% RH (non-condensing)

Response Time:<7 ms or <44 ms

Response Time Note:Response Time (0 to 90%, 100 to 10%): <7 ms or <44 ms

Screw Terminal Torque:0.5 Nm

Span, Max:Corresponds to the presently selected DIP switch output range

Stability:Load Stability: ≤0.002% of span/100 Ω

Storage Temperature, Max:85 °C

Storage Temperature, Min:-40 °C

Supply Power Type:DC
