DwyerOmegaDRG-SC-Series-Sig-Cond

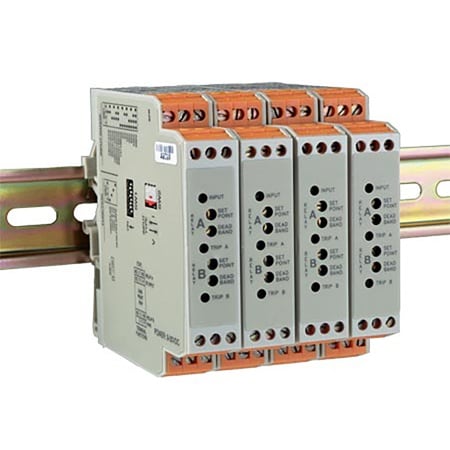

DRG-SC-RTD
- 가격
- 1,042,450 원
- VAT 10%
- 104,245 원
- 총 금액
- 1,146,695 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.1 %
Accuracy Detail:Accuracy (including linearity, hysteresis): ±0.1% typical, ±0.2% max. the maximum input temperature range @ 25°C, 0 Ω lead resistance.
Approvals:CE
Case Style:B
Compliance:0 to 1 mA: 7.5V, max (7.5 kΩ), 4 to 20 mA: 12 V, max (600 Ω)
Electrical Output:0 to 1 mA, 0 to 20 mA, 4 to 20 mA
Excitation Current:< 2 mA for Pt100, Pt500, Pt1000; <5 mA for Cu100; <10 mA for Cu10, Cu25
Height:90 mm
Input Range Note:α = 0.00385Ω/Ω/°C
Input Type:RTD
Isolation:1800 Vdc
Lead Resistance, Max:<1% of the maximum input temperature span.
Length:1102 mm
Mounting:DIN Rail 32 mm Standard or 35 mm
Number of Inputs:1
Operating Temperature, Max:55 °C
Operating Temperature, Min:0 °C
Output Signal:Current, Voltage
Relative Humidity:Operating: 15 to 95% (@45°C), Soak: 90% for 24 hours (@65°C)
Response Time:200 msec
Response Time Note:(10 to 90%): 500 mSec. Typical
Sensor/Transmitter Power:40% of base sensor resistance or 100Ω (whichever is less), max. per lead
Standards:IEC 801-2, Level 2
Storage Temperature, Max:70 °C
Storage Temperature, Min:-25 °C
Supply Power Note:9-30 Vdc, 1.5 W typical, 2.5 W max
Supply Power Type:DC
Supply Voltage:9 to 30 Vdc
Temperature Measurement Range:RTD: -200 to 600°C
Voltage Output Range:0 to 5 V, 0 to 10 V
Width:17.7 mm
Wire Code Option:3- Wire
