DwyerOmegaDRG-AR-Series-Sig-Cond

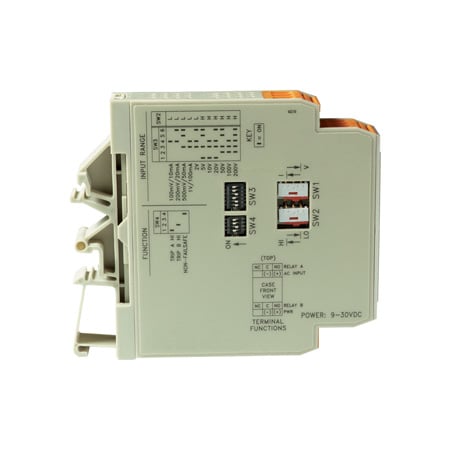

DRG-AR-RTD
- 가격
- 843,630 원
- VAT 10%
- 84,363 원
- 총 금액
- 927,993 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Approvals:CE
Deadband:Relay status will change when proper setpoint condition exists for 100 msec
Electrical Connection:Screw Terminal
Height:90 mm
Input Range Note:α= 0.00385
Input Type:RTD
Isolation:1800 Vdc
Lead Resistance, Max:<1% of the maximum input temperature span.
Length:1102 mm
Limit Differentials (Deadbands):1.0 to 5% of span
Materials:Silver-Cadium Oxide
Mounting:DIN Rail 32 mm Standard or 35 mm
Number of Inputs:1
Operating Temperature, Max:55 °C
Operating Temperature, Min:0 °C
Output Detail:Relay Contacts 2 SPDT (2 form C) Relays 1 Relay per setpoint Current Rating: 120 Vac: 5A, 240 Vac: 2A, 28 Vdc: 5A
Output Signal:Relay
Output Value:Process
Overcurrent:Current: 200 mAac
Relative Humidity:Operating: 15 to 95% (@45°C), Soak: 90% for 24 hours (@65°C)
Relay Output:120 Vac @ 5A, 240 Vac @ 2A, 28 Vdc @ 5A
Response Time:<250 msec
Sensor/Transmitter Power:40% of base sensor resistance or 100Ω (whichever is less), max. per lead
Setpoint Repeatability:0.0002
Standards:IEC 801-2, Level 2
Storage Temperature, Max:70 °C
Storage Temperature, Min:-25 °C
Supply Power Note:9 to 30 Vdc, 1.5 W typical, 2.5 W max
Supply Power Type:DC
Supply Voltage:9 to 30 Vdc
Temperature Measurement Range:RTD: -200 to 850°C
Width:17.7 mm
Wire Code Option:3- Wire
Wire Gauge:22 to 12 AWG
