DwyerOmegaDRF-LC-Series-Sig-Cond
DRF-LC-24VDC-20MV-0/10

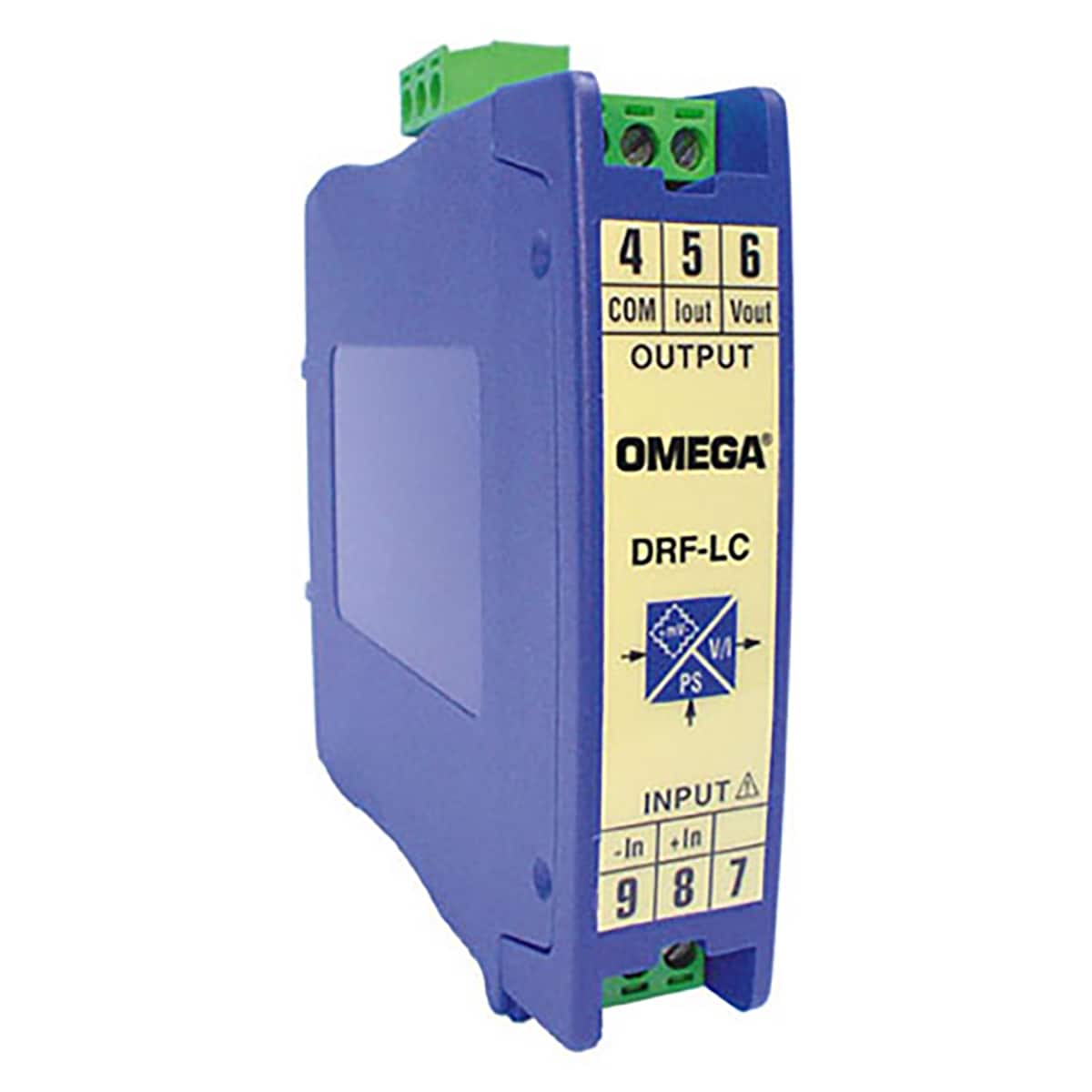

DRF-LC Load Cell Input Signal Conditioner
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 문의리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.2 %
Approvals:CE
Bandwidth:20 Hz (-3dB)
Electrical Connection:Screw Terminal
Enclosure Ratings:IP30
Height:110 mm
Impedance Input:5 MΩ
Input Type:Voltage
Isolation:3500 Veff
Length:93 mm
Linearity:<0.1%
Load Resistance:Voltage Output : ≥1 KΩ, Current Output : ≤400Ω
Mounting:DIN Rail Mount
Number of Inputs:1
Operating Temperature, Max:60 °C
Operating Temperature, Min:0 °C
Output Detail:Maximum Voltage Output: 11 Vdc approx. Minimum Voltage Output: -1 Vdc approx.
Output Signal:Voltage
Output Value:Process
Power Consumption:max 3.8 VA
Protection:Over Range Protection: 15V
Response Time:<75 msec (90% of signal)
Storage Temperature, Max:70 °C
Storage Temperature, Min:-20 °C
Supply Power Note:24 Vdc ±10%, 230 Vac ±10% 50/60 Hz, 115 Vac ±10% 50/60 Hz
Supply Power Type:DC
Supply Voltage:24 Vdc
Temperature Drift:250 ppm/°C
Voltage Measurement Range:0 to 20 mV dc
Voltage Output Range:0 to 10 Vdc
Weight:120 g
Width:22.5 mm
