DwyerOmegaDRC-4710-4720-Sig-Cond

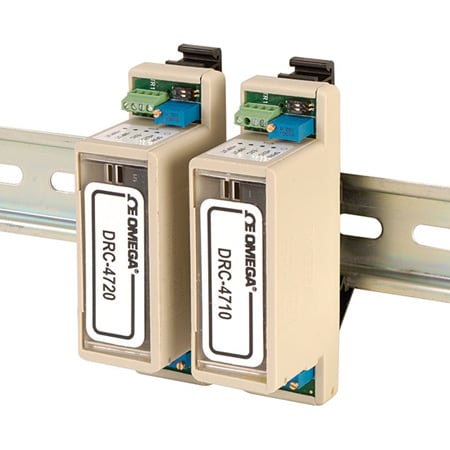

DRC-4710
BRIDGE SIG COND 0-10VDC
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 28 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Bandwidth:DC to 10 Hz
CMRR:100 dB (dc)
Common Mode Voltage:0 to 5V
Electrical Output:0 to 10 Vdc
Height:96 mm
Input Noise Voltage:0.3 µV pp typ (0.1 to 10 Hz);
Input Range Note:Input Range: 0 to 10 mV, 0 to 20 mV, 0 to 30 mV (dip switch selectable), Input Current (One 350 Ω Bridge): 40 mA
Input Type:Voltage
Length:42 mm
Linearity:±0.01%
Mounting:DIN Rail Mount
Number of Inputs:1
Offset:Input Offset Voltage: ± 70 µV
Operating Temperature, Max:55 °C
Operating Temperature, Min:0 °C
Output Detail:Fixed Output: 10V ±1.0%
Output Signal:Voltage
Output Value:Process
Storage Temperature, Max:80 °C
Storage Temperature, Min:-40 °C
Supply Power Type:DC
Supply Voltage:18 to 26 Vdc
Temperature Coefficient:0.05%/°C
Temperature Coefficient Note:Input : 0.05%/°C Input Offset Voltage Temperature Coefficient : 0.7 µV/°C BRIDGE: 0.05%/°C Output ( Total RMS gain temperature Coefficient : 0.007%/°C
Voltage Measurement Range:0 to 30 mV dc
Voltage Output Range:0 to 10 Vdc
Weight:85 g
Width:27 mm
Zero Setting Adjustable Range:20% max output
