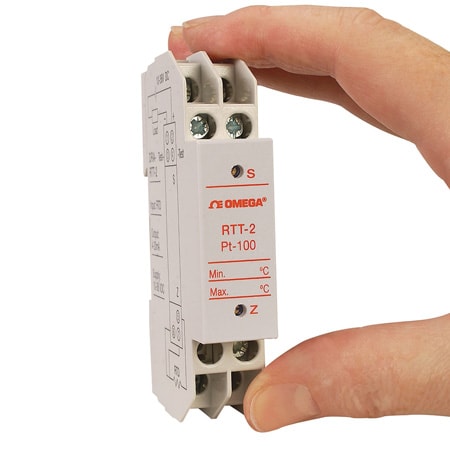

DwyerOmegaDRA-RTT-2-Sig-Cond
DRA-RTT-2
- 가격
- 262,270 원
- VAT 10%
- 26,227 원
- 총 금액
- 288,497 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.1 %
Accuracy Detail:< ±0.1% of span (including linearity, hysteresis and repeatability)
Additional Features 1:Non-Isolated; Test Terminals: 40 to 200 mV represents 4 to 20 mA
Electrical Output:4 to 20 mA
Enclosure Ratings:IP20, IP40
Excitation Current:< 1 mA
Height:90 mm
Input Range Note:3-wire Pt 100 RTD, α= 0.00385, according to DIN 43760/BS1904;Field Ranging: Done by three “zero” DIP switches, three “span” DIP switches and two fine tuning potentiometers
Input Type:RTD
Isolation:None
Lead Compensation Error:< ±0.03% of span for full change
Length:58 mm
Loop Resistance:Rmax (Ω) = (Vsupply - 10)/0.02
Materials:Polycarbonate
Mounting:DIN Rail 35 mm Standard
Number of Inputs:1
Operating Temperature, Max:70 °C
Operating Temperature, Min:-20 °C
Output Signal:Current
Output Value:Process
Relative Humidity:5 to 95% RH, noncondensing
Resistance Tolerance:< ±0.05°C/10 Ω lead resistance
Sensor/Transmitter Power:Sensor Lead Resistance: < 50 Ω
Storage Temperature, Max:85 °C
Storage Temperature, Min:-30 °C
Supply Power Type:DC
Supply Voltage:10 to 36 Vdc
Temperature Measurement Range:Pt100: 30 to 810°C
Temperature Stability:<±0.015% of span/°C
Weight:70 g
Width:17.5 mm
Zero Setting Adjustable Range:-55 to 202°C
