DwyerOmegaDRA-TCI-RTI-Srs-Sig-Cond
DRA-RTI-2

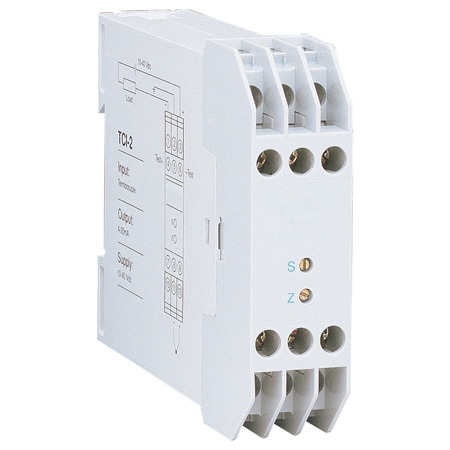

DIN Rail 2-Wire Temperature Transmitters
- 가격
- 419,790 원
- VAT 10%
- 41,979 원
- 총 금액
- 461,769 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.1 %
Accuracy Detail:Including Linearity, Hysteresis and Repeatability
CMRR:127 dB typical DCto 60 Hz
Calibration:Input span: Adjusted by three DIP switches and span potentiometer, Input Zero: Adjusted by three DIP switches and Zero potentiometer; Test Terminals: 40 to 200 mV represents 4-20 mA
DIN Rail Size:35 mm
Electrical Output:4 to 20 mA
Enclosure Ratings:IP20, IP40
Height:3.23 in
Input Type:RTD
Isolation:1500 Vdc or peak ac
Lead Compensation Error:<0.1°C/20 Ohms lead resistance
Length:3.9 in
Loop Resistance:Rmax (ohms) = (Vsupply - 10) / 0.02
Materials:Polycarbonate
Mounting:DIN rail
Operating Temperature, Max:70 °C
Operating Temperature, Min:-20 °C
Relative Humidity:5 to 95% RH
Response Time:160 msec
Span Setting Adjustable Range:26 to 810°C
Storage Temperature, Max:85 °C
Storage Temperature, Min:-30 °C
Supply Current:1 mA
Supply Power:10 to 40 Vdc
Supply Power Type:DC
Temperature Coefficient:α=0.00385
Temperature Stability:<±0.1% of span/°C
Weight:130 g
Width:0.9 in
Wiring/Connector Table:2
Zero Setting Adjustable Range:-62 to 232°C
