DwyerOmegaDRA-ACT-4-Series-Sig-Cond

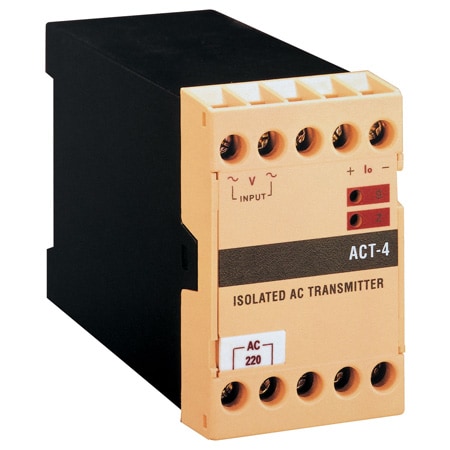

DRA-ACT-4V-1
DIN Rail Mount AC Voltage/Current Signal Conditioners, 4-Wire AC Powered Design
- 가격
- 546,030 원
- VAT 10%
- 54,603 원
- 총 금액
- 600,633 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.1 %
Accuracy Detail:±0.1% of span typical (2 to 100% of span) for pure sinusoidal input
Additional Features 1:4-Wire AC Powered Design
CMRR:122 dB typical; 117 dB min
Electrical Output:4 to 20 mA
Height:119 mm
Input Type:AC Voltage
Isolation:4000 Vrms/ 1min
Lead Compensation Error:< 0.03% for full change
Length:73 mm
Loop Resistance:750 Ω @ nominal ac supply; 600 Ω @ minimum ac supply
Materials:Polycarbonate
Mounting:DIN Rail 35 mm Standard or Wall Mount
Number of Inputs:1
Operating Temperature, Max:70 °C
Operating Temperature, Min:0 °C
Output Ripple:Better than 0.1% of span RMS
Output Signal:Current
Output Value:Process
Power Consumption:0.3 VA
Relative Humidity:5 to 95% RH, noncondensing
Response Time:220 msec
Span Adjustment:± 25 %
Storage Temperature, Max:85 °C
Storage Temperature, Min:-25 °C
Supply Power Effects:40 to 500 Hz
Supply Power Note:115 Vac ± 15%, 50/60 Hz standard; 230 Vac ± 15%, 50/60 Hz optiona
Supply Power Type:AC
Supply Voltage:115 Vac
Temperature Stability:0.02%/1°C
Voltage Measurement Range:0 to 150 Vac
Weight:0.4 kg
Width:45 mm
Zero Setting Adjustable Range:±35% min
