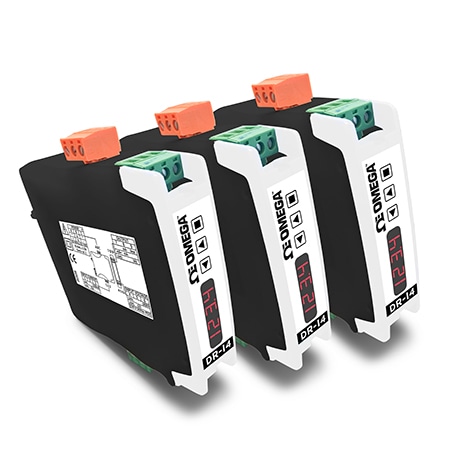

DwyerOmegaDR-I4-Signal-Convertor
DR-I4L
ISOLATED SIGNAL CONDITIONER LOAD CELLS
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 9 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Approvals:CE, RoHS
Current Measurement Range:4 to 20 mA
Display Type:4 Digit Display
Electrical Connection:Screw Terminal
Electrical Output:4 to 20 mA, 0 to 10 Vdc
Enclosure Ratings:IP30
Height:108 mm
Input Range Note:Load cell signals and mV signals
Input Type:Strain Gage Bridge
Isolation:3000 Veff
Length:106 mm
Materials:Polyamide V0
Mounting:DIN Rail 35 mm Standard
Operating Temperature, Max:50 °C
Operating Temperature, Min:0 °C
Output Signal:Current, Voltage
Power Consumption:max 3 W
Response Time:AC Step Response: <350 msec
Response Time Note:<350mSec. (0% to 99% of signal)
Storage Temperature, Max:70 °C
Storage Temperature, Min:-20 °C
Supply Power Note:18 to 265 Vac / dc (isolated 2500 Veff) (20 to 240 Vac/dc ±10%) Overvoltage category: 2 AC frequency: 45 to 65 Hz
Supply Power Type:AC/DC
Supply Voltage:18 to 265 Vac /Vdc
Temperature Stability:150ppm/°C
Voltage Measurement Range:0 to 10 Vdc
Voltage Output Range:0 to 10 Vdc
Warm Up Time:15 min
Weight:150 g
Width:22.5 mm
Wire Gauge:17 to 14 AWG
