DwyerOmegaDR-I3P-Signal-Converter

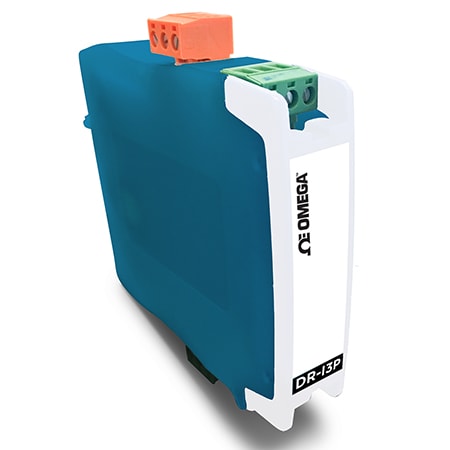

DR-I3P
ISOLATED UNIVERSAL SIGNAL CONDITIONER
- 가격
- 368,930 원
- VAT 10%
- 36,893 원
- 총 금액
- 405,823 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Approvals:CE, RoHS
Current Measurement Range:4 to 20 mA
Display Type:2 Digit LCD
Electrical Connection:Screw Terminal
Electrical Output:4 to 20 mA
Enclosure Ratings:IP30
Height:108 mm
Input Range Note:Process: 4/20 mA (active and passive, max 25 mA, Vterm<1.2 Vdc), 0/10 Vdc (max. 25 Vdc, Zin=1 MOhm);Excitation Voltage: +15 Vdc (@30 mA);Thermocouple: J, K, N, E, T, R and S (automatic compensation for the thermocouple cold junction)‘Pt’ and ‘Ni’ probes: Pt100 (2 and 3 wires, with automatic cable compensation up to 30 Ohm), Pt500, Pt1000, Ni100, Ni1000 (2 wires);‘NTC’ probes: NTC (with R25=10K, Beta=3500), NTC 44006;Resistances: ranges for 100 K, 50 K, 25 K, 5 K and 2.5 KOhms;Potentiometers: nominal from 500 Ohm up to 20 KOhm potentiometers
Input Type:Thermocouple, RTD,Thermistor, Resistance, Potentiometer, Current, Voltage
Isolation:2300 Veff
Length:106 mm
Materials:Polyamide V0
Mounting:DIN Rail 35 mm Standard
Number of Inputs:7
Operating Temperature, Max:50 °C
Operating Temperature, Min:0 °C
Output Signal:Current, Voltage
Power Consumption:max 1.5 W
Response Time:Step Response: 300 msec
Response Time Note:300mSec. (0% to 99% of signal)
Storage Temperature, Max:70 °C
Storage Temperature, Min:-20 °C
Supply Power Note:18 to 265 Vac / dc (isolated 2500 Veff) (20 to 240 Vac/dc ±10%) Overvoltage category: 2 AC frequency: 45 to 65 Hz
Supply Power Type:AC/DC
Supply Voltage:18 to 265 Vac /Vdc
Temperature Measurement Range:J: 0 to 1200°C, K: 0 to 1350°C, N: 0 to 1300°C , E: 0 to 900°C, T: 0 to 400°C, R: 0 to 1750°C, S: 0 to 1950°C, RTD: -200 to 700°C, TH : -50 to 90°C
Temperature Stability:150ppm/°C
Voltage Measurement Range:0 to 10 Vdc
Voltage Output Range:0 to 10 Vdc
Warm Up Time:15 min
Weight:150 g
Width:22.5 mm
Wire Gauge:17 to 14 AWG
