DwyerOmegaDPS3300

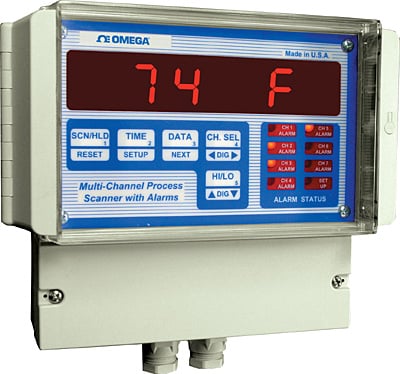

DPS3307TC-3

Process Scanners Wall-Mount 4- and 7-Zone

가격: 2,470,070 원

VAT 10%: 247,007 원

총 금액: 2,717,077 원

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Brand:OMEGA Engineering

A/D Conversion:20,000 count A/D converter; dual-slope integrating converter

Additional Features 1:dedicated_input

Calibration:Calibration: NIST traceable (temperature),Resolution: 1°C or F,Thermistor: 0.1°C/0.2°F,Process: 9999, 999.9, 99.99, 9.999,Selectable Temperature Units: Celsius or Fahrenheit

Channel Display Time:Programmable from 1 to 999 seconds

Cold Junction Error:1°C (10 to 40°C)

Control Output:Open-Collector Output

Conversion Rate:7 conversions per second

Display Size:20 mm (.78 in)

Display Type:7 Digit LED

Display Type Note:Red 7-segment LED display, 7 digits, 20 mm (0.8") high; negative polarity indication Over-Range Indication: “HELP” Display Test: Briefly indicates 8.8.8.8.8.8.8 on power-up

Enclosure Material:Polycarbonate

Enclosure Ratings:IP65

Form factor:Wall Mount

Height:160 mm

Input Type:Thermocouple

Input Type Note:J, K, T, E, R, S, B, Pt100 RTD and thermistor [2252 Ω @ 25°C (77°F)], 4 to 20 mA, 0 to 100 mV, 0 to 10 Vdc

Length:103 mm

Material Construction Option:N/A

Measuring Range:Thermocouple: Type J: -200 to 1190°C Type K: -170 to 1365°C Type T: -155 to 400°C Type E: -185 to 915°C Current: 1 to 30,000 counts Voltage: 1 to 30,000 counts

Number of Channels:7

Number of Inputs:1

Number of Relays:7

Open Thermocouple Indication:“HELP” displayed

Recording time:Displayed in hours, minutes and seconds,Format: HH.MM.SS

Resolution:1 °C or °F

Retransmission/Analog Output:7 Relays

Retransmission/Analog Output Note:SPST, 1 A @ 28 Vdc or 0.5 A @ 120 Vac

Scan Rate:Fixed, 2 channels/sec

Supply Power Note:120 Vac—60 Hz (standard) 220 Vac—50/60 Hz (optional) 8 to 15 Vdc @ 900 mA

Supply Voltage:120 Vac

Temperature Sensor Type:N/A
