DwyerOmegaModel-DPMF
DPMF

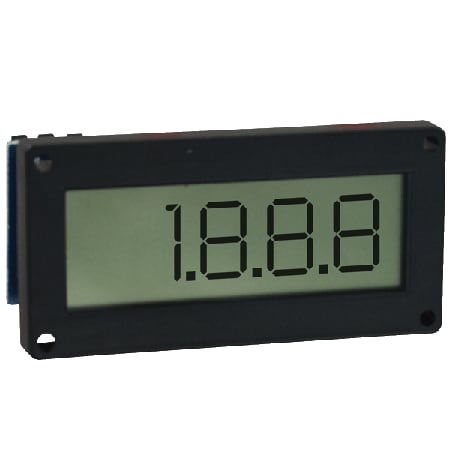

Flush mount LCD digital panel meter, loop powered 4 to 20 mA.
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 8 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Accuracy:± 0.1 % + 2 count
Cable Type:N/A
Compliance:RoHS 2
Conversion Rate:3 per second
Current Measurement Range:4 to 20 mA
Decimal Selection:3-Position, User Selectable
Display Note:3-1/2 digits, 7 segments, 0.5˝ (12 mm) H
Display Type:LCD
Electrical Connection:Screw Terminal
Impedance:300 Ω
Input Type:Current
Mounting:Surface Mount
Operating Temperature, Max:122 °F
Operating Temperature, Min:32 °F
Polarity:Automatic, positive implied, negative polarity indication
Storage Temperature, Max:158 °F
Storage Temperature, Min:-4 °F
Supply Power Type:Loop Power
Voltage Measurement Range:N/A
Warm Up Time:10 min (typical)
Weight:1.2 oz
Zero Setting Adjustable Range:Adjustable (± 1999 counts)
