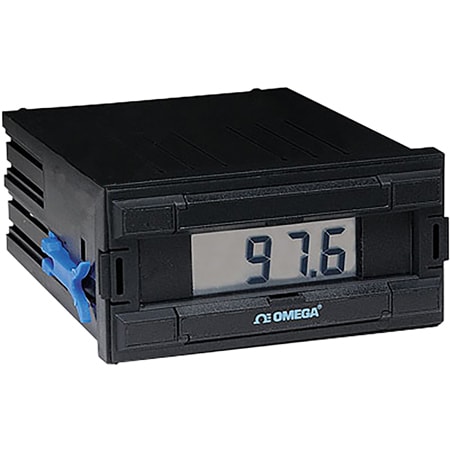

DwyerOmegaDPM35-DP35
DPM35A
1/32 & 1/8 DIN Process Indicators
- 가격
- 452,030 원
- VAT 10%
- 45,203 원
- 총 금액
- 497,233 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: Limited Stock리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
A/D Conversion:Dual-slope, average value
Accuracy:± 0.2 %
Accuracy Detail:0.2% ±1 count
Common Mode Rejection:65 dB
Cutout Dimensions:22.2 x 45 mm
Display Size:10 mm (.39 in)
Display Type:3.5 Digit Single LED
Display Type Note:3 1/2 digit, 0 to 1999; 7-segment, Red LED. Overrange: Positive = display blank, negative = “-” is displayed. Decimal Point: Jumper-selectable for 1.XXX, 1X.XX or 1XX.X.
Electrical Connection:Screw Terminal
Form factor:1/32 DIN
Height:24 mm
Input Configuration:Bipolar single
Input Type:Current, Voltage
Number of Inputs:1
Operating Temperature, Max:60 °C
Operating Temperature, Min:-20 °C
Output Ripple:0.1
Polarity:Automatic, minus sign indicator
Power Consumption:0.6 W
Power Consumption Note:0.6 W @ 24 Vdc
Reading Rate:2.5 samples/sec
Sampling Rate:2.5 Hz (2.5 updates/second)
Supply Power Note:Power: 10 to 30 Vdc, isolated
Supply Power Type:DC
Supply Voltage:10 to 30 Vdc
Temperature Coefficient:2 µV/°C
Thermal Span Effect:< 50 ppm
Warm-Up to Rated Accuracy:2 min
Weight:60 g
Width:48 mm
