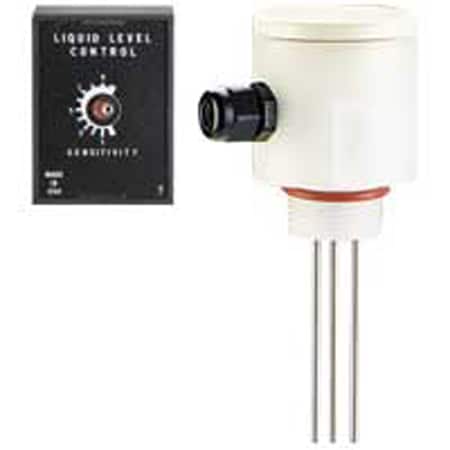

DwyerOmegaModel-DPL110
DPL110
DPL110 DUAL PNT LVL SW
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 10 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Cable Length:10 ft
Enclosure Ratings:IP67, NEMA Type 6
Materials, Wetted:316 Stainless Steel, Polypropylene
Measurement Pressure Type:Gauge
Media Compatibility:Alkaline solutions, Dilute Acids, Hydraulic Oil, Light Oil, Oil, Solvents, Water, Water-based fluids
Mounting Orientation:Sensor Head: 1" Male NPT, Controller: Standard octal socket or 35 mm DIN rail
Operating Temperature, Max:212 °F
Pressure Limits:Up to 30 psi
Probe Diameter:0.125 in
Probe Length:24 in
Probe Length, Max:72 in
Resistance Selection:N/A
Sensor Voltage:12 Vac
Supply Power Type:AC
Supply Voltage:120 Vac
Switch Rating:5A @ 240 Vac
Switch Type:SPDT NO/NC, Selectable
Weight:1.5 lb
Weight Note:Controller: 1.0 ; Probe Assembly: 1.5
