DwyerOmegaDPi1701-series

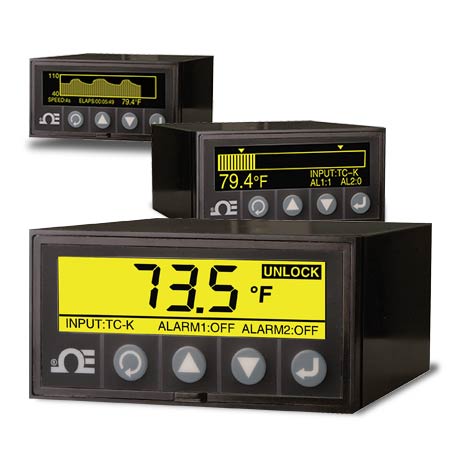

DPI1701-USB-R

Graphic Display Panel Meter and Data Logger for Temperature and Process Measurement

판매 가격: 가격 문의

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 101 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Brand:OMEGA Engineering

Accuracy:± 0.5 °C

Additional Features 1:Enable/disable, high/low, latch/unlatch , Line Graph Time Speed: Adjustable from 1 to 60 sec

Backlight:true

Clock:Backed-up for 2 weeks when there is no main power

Current Measurement Range:0 to 20 mA

Cutout Dimensions:45 x 92 mm

Data Interface:USB

Data Interface Note:Isolated USB or RS232 (9600 baud rate, 8-bit data, no parity, 1 stop bit)

Data Retention:Up to 85,000 data points with time stamping

Deadband:0 to 100%

Display:Standard Digital, Large Digital, Horizontal bar graph, Line Graph Charting

Display Type:Monochrome Backlit LED Display

Display Type Note:Monochrome Backlit, 240 x 64 dots

Enclosure Ratings:NEMA Type 1

Form factor:1/8 DIN

Height:48 mm

Isolation:Power to Input/Output: 3000 Vac for 1 minute Power to Relays: 2300 Vac for 1 minute

Keypad:4 tactile feedback keys

Logging Interval:Adjustable from 1 to 60 sec

Memory Modes:Alarm Initiated, Continuous (first-in:first-out), Delayed Start, Manual Start, stop when full

Operating Temperature, Max:50 °C

Operating Temperature, Min:0 °C

Output Detail:SPDT, 250 Vac or 30 Vdc @ 3A

RTD Type:100 Ω Pt sensor, 2- or 3-wire; α= 0.00385

Relative Humidity:90% RH non-condensing

Sampling Rate:4 Hz (4 updates/second)

Sensor Break Detection:Open Thermocouple/RTD Detection - Up scale

Sensor/Transmitter Power:0 to 5 Vdc, 0 to 10 Vdc or 4 to 20 mA isolated

Software:Runs on Windows® 7, 8*, and 10

Supply Power Note:90 to 240 Vac ±10%, 50 to 400 Hz

Supply Voltage:90 to 240 Vac

Temperature Measurement Range:Type J: -100 to 760°C (-148 to 1400°F) ,Type K: -100 to 1260°C (-148 to 2300°F) ,Type E: -200 to 849°C (-328 to 1560°F) ,Type T: -200 to 400°C (-328 to 752°F) ,Type R & S: 100 to 1760°C (212 to 3200°F) ,RTD: -200 to 850°C

Thermocouple Lead Resistance, Max:100 Ω

Voltage Measurement Range:0 to 10 Vdc

Weight:295 g

Width:96 mm

Wireless Band:2.4 GHz
