DwyerOmegaDPG9000

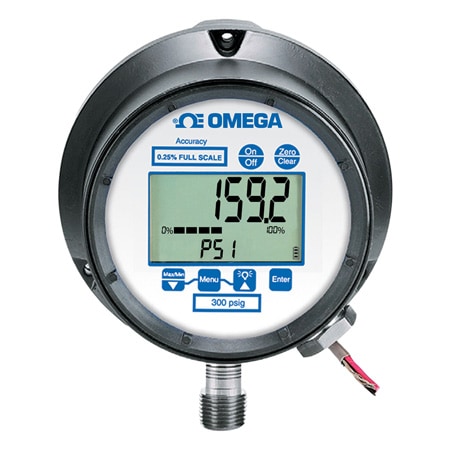

DPG9130-15
0 to 15 psi, Gauge, Loop Powered, 3" case, Backlit display
- 가격
- 1,786,680 원
- VAT 10%
- 178,668 원
- 총 금액
- 1,965,348 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 8 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy Class:0.1% to 0.25%
Accuracy Detail:0.25% Full Scale, terminal point
Backlight:true
Battery life:1000 hr
Connection Location:Lower, Left, Right, Upper
Display Type:LCD
Display Type Note:Type: LCD Display Digits: Five (5) Character Height: 3˝ .60˝, 41 ⁄2˝ .88˝ Backlite: Optional Bar Graph: Yes Battery Life: 3˝ >1000 hrs., 41 ⁄2˝ >3600 hrs. Agency Approvals: CE, FM* (Intrinsically Safe Class1, Div 1), CSA and CENELEC *FM is not available with the following: 41 ⁄2˝ polypropylene case, SPDT switch option(s) (XU1, U2) or Backlite (XBL) option).
Enclosure Material:Fiber Reinforced Thermoplastic
Keypad Functions:On/Off: Manually turns unit on and off (auto off options in menu) Zero/Clear: Zeros display or clears min. and max. values when displayed Min/Max (down) Stores min and max values, arrow key allows for Arrow Key: scrolling thru menu items. Menu Key: Provides access to menu options. Backlite Arrow Key: Manually turns backlite on and off (auto off options in Arrow Key: menu), arrow key allows for five menu options. (up)arrow key allows for scrolling thru menu options. Enter: Selects items in the menu.
Measurement Pressure Type:Gauge
Measurement Pressure, Max:15 psi
Measurement Pressure, Min:0 psi
Menu Mode:Engineering Units: 10 units of measurement are available; psi, In. H2O (with three temp. options: 20°C, 60°F, 4°C*), Ft. H2O, mPa, mBar, kPa, kg/cm2 , Bar, inHg and mmHg. Configuration Mode: Allows for changes to default settings of gauge Allows for changes to default settings of gauge. Bar Graph: Allows for adjustment of bargraph and 4-20 (optional feature). Auto Off (Off): Allows for changes to auto off of gauge, five options: Never, 2 min., 5 min., 15 min., 30 min. Update Rate: Four options: 100 ms, 200 ms, 500 ms, 1 sec Dampening: Six options: None, average, 2, 4, 6, 8 times per 100ms. Backlite: Five options: Never, 10 sec., 30 sec., 1 min., 5 min. Field Recalibration:Allows for recalibration of zero, midscale and span (password protected)
Number of Digits:5
Operating Temperature, Max:140 °F
Operating Temperature, Min:14 °F
Outer Diameter:3 in
Pressure Accuracy:± 0.25 %
Process Connection Size:1/4 in
Process Connection Type:NPT Male
Storage Temperature, Max:158 °F
Storage Temperature, Min:-4 °F
Supply Power Note:12-36 Vdc, 2VA maxBattery Note:
Supply Power Type:Loop Powered
Supply Voltage:12 to 36 Vdc
