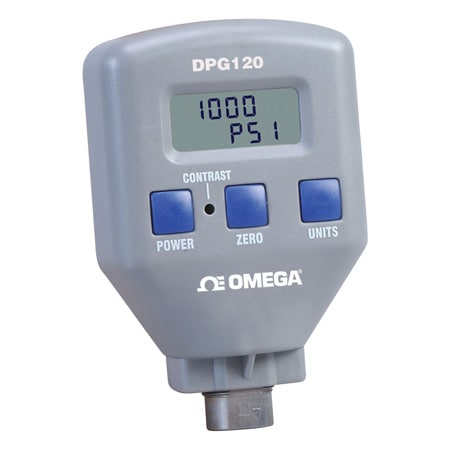

DwyerOmegaDPG110-120
DPG120
0 to 60 psi, Gauge Pressure, Loop Powered, 4 to 20 mA Output
- 가격
- 685,020 원
- VAT 10%
- 68,502 원
- 총 금액
- 753,522 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 13 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy Class:> 0.25%
Accuracy Detail:± 0.5% BFSL (includes non-linearity, hysteresis, repeatability)
Auto-Shutoff:1 hour
Battery Size and Type:Alkaline 9V
Battery life:100 hr
Burst Pressure:4x Full Scale
Height:101 mm
Length:44 mm
Materials, Wetted:Stainless Steel
Measurement Pressure Type:Gauge
Measurement Pressure, Max:1000 psi
Measurement Pressure, Min:-14 psi
Number of Digits:3.5
Operating Temperature, Max:55 °C
Operating Temperature, Min:0 °C
Pressure Accuracy:± 0.5 %
Pressure Cycles:>100 million cycles
Process Connection Size:1/4 in
Process Connection Type:NPT Male
Process Temperature, Max:55 °C
Process Temperature, Min:0 °C
Proof Pressure:2x Full Scale
Sample/Display Rate:3 samples per second
Stability:(1 Year): ± 0.25% FS typical
Storage Temperature, Max:65 °C
Storage Temperature, Min:-40 °C
Supply Power Type:Battery
Thermal Span Effect:<± 1.5% FS
Thermal Zero Effect:<± 1.5% FS
Weight:0.16 kg
Width:63 mm
