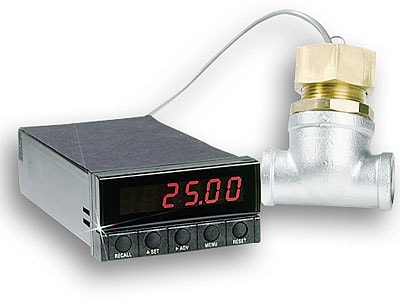

DwyerOmegaDPF700
DPF702
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 문의리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.5 %
Accuracy Detail:±0.5 LSD Total, 0.01% of the rate ±1.5 LSD
Additional Features 1:Rate Measurement Technique 1/x
Control Output:Optional
Cutout Dimensions:3.62 x 1.73 in
Decimal Selection:Autoranging, User Selectable
Display Color:Red
Display Type:LED
Form factor:1/8 DIN
Frequency:30 kHz
Frequency Response:Gate Time: 0.30 sec
Front Panel Dimensions:4.437 x 2.625 in
Input Note:TTL, CMOS, NPN open collector, contact closure and magnetic pickup compatible
Input Type:Frequency
Memory:Non-Volatile Memory
Mounting Orientation:Panel Mount
Number of Digits:6
Number of Inputs:1
Panel Depth:3.6 in
Pulse Input Note:Low Level: 25 mV rms; Max Level: 60 V; Trigger Slope: Selectable by DIP switch
Setpoint:Two, Optional
Supply Power Type:AC
Supply Voltage:230 Vac
Weight:1 lb
