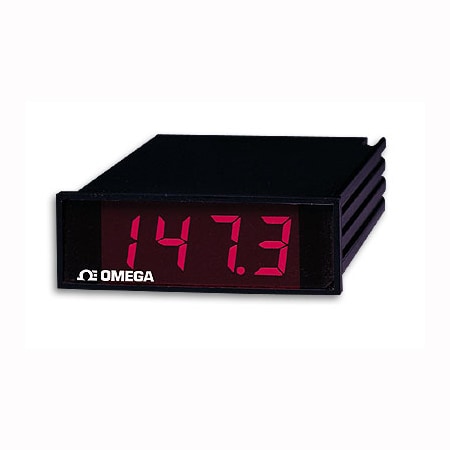

DwyerOmegaDPF53
DPF51-PV4-7/32
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 103 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
A/D Conversion:Dual-slope, average value
Accuracy:± 0.05 % rdg ±1 count
Cutout Dimensions:22 x 68 mm
Display Color:Red
Display Size:14.2 mm (0.56 in)
Display Type:3.5 Digit Single LED
Display Type Note:7-segment, LED; 14.2 mm (0.56") Decimal Points: Three positions jumper-selectable
Excitation Voltage Note:Transmitter Excitation Supply: Selectable 10V @ 30 mA or 24 Vdc @ 20 mA
Form factor:3/64 DIN
Front Bezel:24 H X 72 W mm
Height:24 mm
Impedance Input:1 MΩ
Input Type:Voltage
Line Regulation:±0.01%/V of AC power
Load Regulation:±0.5%
Noise Rejection:NMR, SIG HI to SIG LO: 60 dB, 50/60 Hz ;CMR, SIG GND to SIG LO: 86 dB, dc to 60 Hz ;CMV, SIG GND to SIG LO: -1 to +2.5 Vdc
Number of Inputs:1
Operating Temperature, Max:60 °C
Operating Temperature, Min:0 °C
Output Ripple:± 0.01 %
Power Supply Rejection:86 dB at 50/60 Hz
Reading Rate:2.5 samples/sec
Relative Humidity:95% at 40°C (non-condensing)
Resolution:0.1 mV (100 µV), 0.001V (1 mV), 0.001V (10 mV), 0.1V (100 mV)
Sensor/Transmitter Power:10V @ 30 mA
Signal Integration Period:100 ms
Step Response:1 sec
Supply Power Note:24, 100, 115 or 230 Vac ±15% @ 2 watts; 49 to 63 Hz
Supply Voltage:7 to 32 Vdc, 24 to 230 Vac
Temperature Coefficient:±0.01% of offset/°C
Thermal Span Effect:±0.02% of rdg/°C
Weight:200 g
Width:72 mm
