DwyerOmegaDPF11-12
DPF12-24VAC

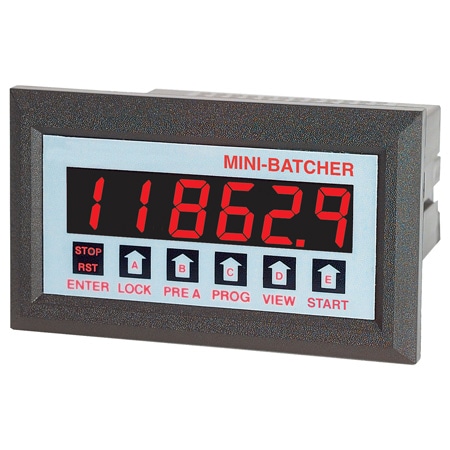

Batch Controller
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 9 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.01 %
Accuracy Detail:0.01% FS (±1 display digit)
Approvals:CE, RoHS Compliance
Control Output:2 Relays
Cutout Dimensions:3.62 x 1.73 in
Display Color:Red
Display Note:6-digit, 13.97 mm (0.55") high LED (±1 display digit)
Display Type:LED
Electrical Output:12 Vdc @ 50 mA
Enclosure Ratings:IP65, NEMA Type 4X
Form factor:1/8 DIN
Frequency Input Range:10 kHz
Front Panel Dimensions:4.437 x 2.625 in
Humidity Range:0 to 90% RH non-condensing
Impedance Input:30 mV input, (50V max) signals 10 KΩ imp. 5 kHz max
Input Type:Magnetic Pulse
K-Factor:0.001 to 99999
Memory:EEPROM, 10 Years if Power is lost
Mounting Orientation:Panel Mount
Number of Digits:6
Number of Inputs:1
Number of Relays:2
Operating Temperature, Max:54 °C
Operating Temperature, Min:0 °C
Panel Depth:4.245 in
Retransmission/Analog Output:N/A
Sampling Rate:10 kHz (10,000 updates/second)
Storage Temperature, Max:93 °C
Storage Temperature, Min:-40 °C
Supply Power Type:AC
Supply Voltage:24 Vac
Switch Rating:5A @ 120/240 or 28 Vdc
Switch Type:NPN NC
Switch Type Note:(2) Rated 5 Amps, 120/240 Vac or 28 Vdc (NC relay contacts and NPN transistor output available with solder jumpers)
Weight:2 lb
