DwyerOmegaDP9800-Series

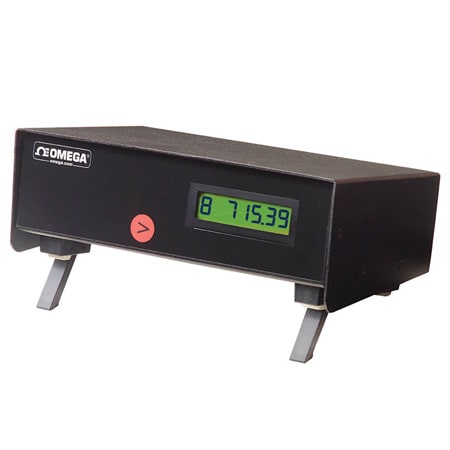

DP9800-TC

판매 가격: 가격 문의

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 문의리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Brand:OMEGA Engineering

Accuracy:± 0.1 °C (± 0.18 °F)

Accuracy Detail:Thermocouples J, K, T, E, and N, better than ±0.1°C ±0.1% of range zero to span ±0.15% of range -100 to - 200°C (J, K, T, and E)

Additional Features 1:Real Time Logging, AC Adapter Provided

Calibration Note:User facility incorporated; the instrument auto-calibrates on every A/D cycle

Cold Junction Compensation:Automatic, accurate reference

Connection Note:8 x thermocouple, mini connectors

Data Interface:USB

Display Type:Single 5 Digit LCD

Display Type Note:LCD, backlight, Display Resolution: Thermocouple ranges 0.1°C, Pt100 range 0.01°C

Display and Indications:Channel number, measured temperature (°C or °F)

Form factor:Benchtop

Input Type:Thermocouple

Input Type Note:Thermocouples: R, S, and B, better than ±0.1°C ±0.15% of range Pt100 Range: Better than ±0.05°C ±0.1% of range

Linearization Points:±0.05°C

Logging Interval:0

Material Construction Option:N/A

Measuring Range:Type J: -200 to 750°C (-328 to 1382°F) Type K: -200 to 1200°C (-328 to 2192°F) Type T: -200 to 350°C (-328 to 662°F) Type E: -200 to 900°C (-328 to 1652°F) Type N: 0 to 1300°C (32 to 2372°F) Type R: 0 to 1760°C (32 to 3200°F) Type S: 0 to 1760°C (32 to 3200°F) Type B: 300 to 1800°C (572 to 3272°F)

Number of Inputs:8

Operating Temperature, Max:50 °C

Operating Temperature, Min:0 °C

Sampling Rate:0.5 Hz (2 seconds between updates)

Storage Temperature, Max:70 °C

Storage Temperature, Min:-20 °C

Supply Power Note:6 Vdc (5.5 to 9.0V) via universal mains adaptor (supplied), 120 to 250V, 50/60 Hz

Supply Power Type:DC

Supply Voltage:6 Vdc

Temperature Drift:±0.01% of span per °C

Temperature Sensor Type:Thermocouple Type R, Thermocouple Type S, Thermocouple Type B

Terminal block:8 x Pt100
