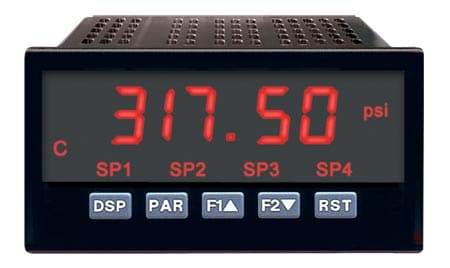

DwyerOmegaDP63800-E-Series
DP63800-E
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 문의리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
A/D Conversion:16-bit resolution
Accuracy:± 0.12 % of rdg ± 3 mV
Additional Features 1:Output Modules : For complete specifications, see LDP63100 Series online
Altitude,Max:Up to 2000 m
Conversion Rate:20 readings/sec
Cutout Dimensions:49.5 x 96.5 mm
Display Color:Red, Green
Display Resolution:1 mV
Display Size:14.2 mm (0.56 in)
Display Type:5 Digit LED
Display Type Note:5-digit, 14.2 mm (0.56") red sunlight-readable or standard green LEDs, (-19999 to 99999) Display Update Rate: 1 to 20 updates/s
Electrical Connection:Screw Terminal
Enclosure Ratings:IP65, NEMA Type 4X
Form factor:1/8 DIN
Functions:Setpoint Output On/Off Delay Time: 0 to 3275 seconds;Analog Output Update Rate: 0 to 10 s ;Max/Min Capture Delay Time: 0 to 3275 seconds
Impedance Input:500 Ω
Input Type:10 Vdc
Isolation:2300 Vrms for 1 min to all inputs and outputs
Keypad:3 programmable function keys, 5 keys total
Memory:Non-volatile EEPROM retains all programmable parameters and display values
Number of Inputs:1
Operating Temperature Note:0 to 50°C (32 to 122°F) [0 to 45°C (32 to 113°F) with all 3 plug-in cards installed]
Operating Temperature, Max:50 °C
Operating Temperature, Min:0 °C
Overload, Max:300 V
Programmable Functions:Min/Max Capture Delay, On/Off Delay, Output, setpoint limits, Update Rate
Relative Humidity:0 to 85% max RH non-condensing
Sampling Rate:60 Hz (60 updates/second)
Sensor/Transmitter Power:24 Vdc, ±5%, regulated, 50 mA max
Step Response:200 ms max to within 99% of final readout value (digital filter and internal zero correction disabled); 700 ms max (digital filter disabled, internal zero correction enabled)
Storage Temperature, Max:60 °C
Storage Temperature, Min:-40 °C
Supply Power Note:AC Versions: AC Power: 85 to 250 Vac, 50/60 Hz, 15 VA Isolation: 2300 Vrms for 1 min to all inputs and outputs DC Power: 11 to 36 Vdc, 11 W AC Power: 24 Vac, ± 10%, 50/60 Hz, 15 VA Isolation: 500 Vrms for 1 min to all inputs and outputs (50V working)
Supply Power Type:AC
Supply Voltage:85 to 250 Vac
Weight:295 g
