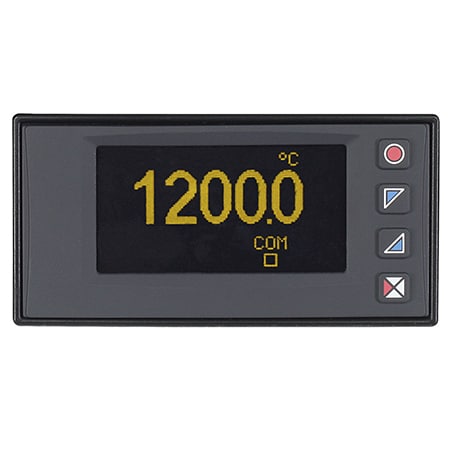

DwyerOmegaDP400TP-Series
DP400TP
- 가격
- 606,540 원
- VAT 10%
- 60,654 원
- 총 금액
- 667,194 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Additional Features 1:Trend visualization
Control Output:2 SPDT Relay
Cutout Dimensions:48 x 96 mm
Data Interface:RS485
Data Interface Note:RS485 Modbus RTU - Slave (1200 ~ 115200 Baud) galvanically isolated from Power supply/Inputs/Outputs
Display Type:Graphical OLED
Electrical Connection:Screw Terminal
Enclosure Material:Polycarbonate V0
Enclosure Ratings:IP65, NEMA Type 4
Form factor:1/8 DIN
Input Type:Themocouple, RTD, Current, Voltage
Input Type Note:1 Analogue: Res.16 bit, Selecting for T/C type K, S, R, J, T, E, N, B (automatic compensation of the cold junction 0 ~ 50 °C, ± 0,2% F.S. ± 1 Digit F.S.), thermoresistances PT100, PT500, PT1000, Ni100, PTC1K, NTC10K (ß 3435K), process signals 0-10 V(54000 points), 0/4-20mA(40000 points), 0-60 mV (16000 points), Potentiometer 6 KO, 150 KO (50000 points) Customizable linear input (max 16 steps) 2 Digital: PNP inputs programmable for Run / Hold / Tare-Zero / Alarms reset/ Peaks reset/ Totalizer reset / Activate-Reset Sum / Parameters-Setpoint Lock
Number of Inputs:1
Operating Temperature, Max:45 °C
Operating Temperature, Min:0 °C
Output Configurations:2 Analog Current
Output Configurations Note:1 output 0 ~ 10V (60000 points) - 1 output 0/4 ~ 20mA (60000 points) Analogue Retransmission: Process values / Setpoints
Output Detail:2A - 250VAC (resistive charge)
Power Consumption:8 VA
Quick Set-up Options:Software LABSOFTVIEW and/or Memorycard
Relative Humidity:35 ~ 95 RH% (non condensing)
Sampling Rate:4.12 Hz to 242 Hz (4.12 to 242 updates/second)
Sensor/Transmitter Power:24 VDC - 30mA for external sensors supply (loop-powered)
Supply Power Note:24 ~ 230VAC/DC ±10% 50/60 Hz (galvanic isolation 2500V)
Supply Power Type:AC/DC
Supply Voltage:24 to 230 Vac/Vdc
Thermocouple Type:J, K, T, E, R, S, B, N
Weight:165 g
