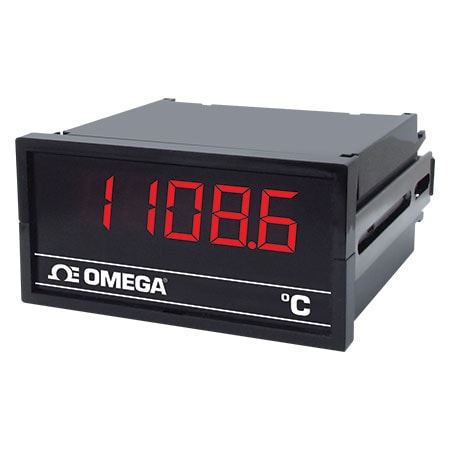

DwyerOmegaDP3002-JKT
DP3002-KC1
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 103 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
A/D Conversion:Dual-slope technique
Accuracy:± 1.5 °C (± 2.7 °F) + 1 count
Analog Output:1 mV/deg
Calibration:IEC 584-1 (IPTS-68)
Cutout Dimensions:45 x 92 mm
Depth Behind Panel:104 mm
Digital I/O Note:Level: TTL or 5V CMOS compatible
Display Size:14.2 mm (0.56 in)
Display Type:4.5 Digit LED
Display Type Note:Symbols: -1.8.8.8.8 Decimal Points: Four positions programmable by jumpers behind the lens or at connector Overrange Indication: Four least-significant digits flash
Enclosure Material:Polycarbonate
Enclosure Ratings:IP65, NEMA Type 4
Form factor:1/8 DIN
Front Bezel:96 W x 48 H x 5.1 D mm
Input Configuration:Single-ended
Input Type:Thermocouple
Lead Resistance, Max:Type K: 50 µdeg/deg/Ω, up to 2000 Ω, Current Break: 300 nA
Noise Rejection:NMR, SIG HI to SIG LO: 70 dB, 50/60 Hz ;CMR, ANA GND to PWR GND: 120 dB, DC to 60 Hz ;CMV, ANA GND to PWR GND: 1500 Vp per HV test, 354 Vp per IEC spacing
Operating Temperature, Max:60 °C
Operating Temperature, Min:0 °C
Output Configurations:Analog Current/Voltage
Output Configurations Note:Voltage: 1 mV/deg Calibration Error: ±1.5 mV on °C, ±2.7 mV on °F Current: 1 mA max Source Resistance: 68 Ω
Polarity:Bipolar
Power Consumption:3.7 W
Reading Rate:2.5 samples/sec
Relative Humidity:95% at 40°C (non-condensing)
Resolution:0.1°C
Sensor Break Detection:Positive overrange (upscale)
Sensor/Transmitter Power:4.7 Vdc and -4.7 Vdc ±5%, 10 mA max
Step Response:1 sec
Storage Temperature, Max:85 °C
Storage Temperature, Min:-40 °C
Supply Power Note:AC Voltages: 115 or 230 Vac ±15% AC Frequency: 49 to 440 Hz DC Voltages: 9 to 32 Vdc, isolated to 300 Vp; 26 to 56 Vdc, isolated to 300 Vp Power Consumption: 2.5 W
Supply Voltage:9 to 56 Vdc, 115 to 230 Vac
Temperature Coefficient:±0.05 deg/deg
Temperature Measurement Range:-105 to 1248°C
Thermal Span Effect:±0.01% of reading/°C
Thermocouple Type:K
Warm-Up to Rated Accuracy:20 min
Weight:425 g
