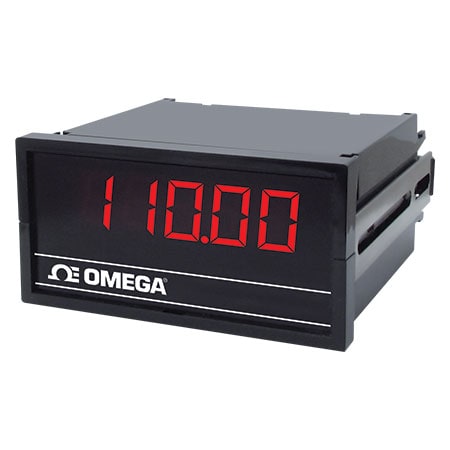

DwyerOmegaDP3001
DP3001-3
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 103 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
A/D Conversion:Dual-slope, average value
Accuracy:± 0.01 % of reading ± 2 counts
Cutout Dimensions:45 x 92 mm
Depth Behind Panel:104 mm
Digital I/O Note:HOLD and TEST Inputs: TTL or 5 V CMOS compatible Blanking Input: Open-collector compatible
Display Size:14 mm (.56 in)
Display Type:4.5 Digit LED
Display Type Note:Symbols: -1.8.8.8.8 Decimal Points: Four positions selectable by jumpers from front panel or at connector, 10 mA sink Overrange Indication: Four least-significant digits flash
Enclosure Material:Polycarbonate
Enclosure Ratings:IP65, NEMA Type 4
Form factor:1/8 DIN
Front Bezel:96 W x 48 H x 5.1 D mm
Impedance Input:1 GΩ
Input Configuration:Bipolar, Differential
Input Range Note:Analog Input Range: ±2, ±20, ±200 V External Reference Input: +0.5 to +2.0 V Load on Reference, Std: 6 kΩ Load on Reference, Opt: 100 MΩ
Noise Rejection:NMR, SIG HI to SIG LO: 56 dB, 50/60 Hz ;CMR, SIG LO to ANA GND: 86 dB, DC to 60 Hz ;CMR, AC GND to ANA GND: 120 dB, DC to 60 Hz ;CMV, SIG LO to ANA GND: ±1 Vp ;CMV, AC GND to ANA GND: 1500 Vp per HV test, 354 Vp per IEC spacing
Operating Temperature, Max:60 °C
Operating Temperature, Min:0 °C
Polarity:Automatic
Power Consumption:2.5 W
Reading Rate:2.5 samples/sec
Relative Humidity:95% at 40°C (non-condensing)
Resolution:100 µV
Sensor/Transmitter Power:4.7 Vdc and -4.6 Vdc ±5%,10 mA max
Signal Integration Period:100 ms
Span Adjustment:± 5 %
Step Response:1 sec
Storage Temperature, Max:85 °C
Storage Temperature, Min:-40 °C
Supply Power Note:AC Voltages: 115 or 230 Vac ±15% AC Frequency: 49 to 440 Hz DC Voltages: 9 to 32 Vdc, isolated to 300 Vp; 26 to 56 Vdc, isolated to 300 Vp Power Consumption: 2.5 W
Supply Voltage:9 to 56 Vdc, 115 to 230 Vac
Thermal Span Effect:±0.01% of reading/°C
Voltage Measurement Range:±1.9999 Vdc
Warm-Up to Rated Accuracy:10 min
Weight:400 g
