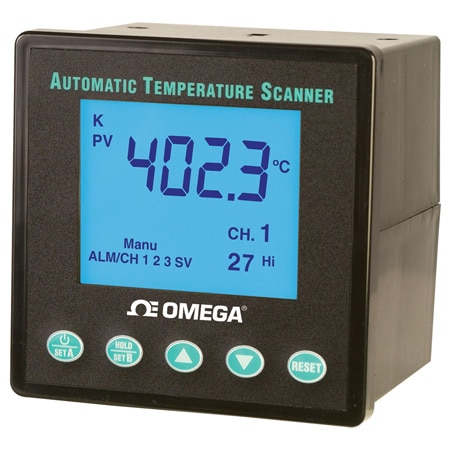

DwyerOmegaDP1001AM-Series
DP1001AM
- 가격
- 1,137,360 원
- VAT 10%
- 113,736 원
- 총 금액
- 1,251,096 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.15 % of reading, ± 1 °C
Alarm modes:High/Low, Latch/Unlatch, Manual reset
Cutout Dimensions:92 × 92 mm
Data Interface:RS232
Data Interface Note:RS232 Transmit Only, 2 wire configuration, Tansmit & Ground connections, One way communications only
Display Size:1.4 cm
Display Type:4 Digit LCD
Display Type Note:LCD, backlight, PV, SV and status indicators, 4-digit, PV 1.4 cm (0.56")
Form factor:1/4 DIN
Height:89 mm
Input Type:Thermocouple
Length:95 mm
Material Construction Option:N/A
Measuring Range:Type J: -50 to 1000°C (-58 to 1832°F) Type K: -50 to 1370°C (-58 to 2498°F) Type T: -120 to 400°C (-184 to 752°F) Type E: -50 to 759°C (-58 to 1382°F)
Memory Backup:Non-Volatile
Number of Inputs:1
Number of Relays:1
Operating Temperature, Max:50 °C
Operating Temperature, Min:0 °C
Power Consumption:1.8 W
Resolution:0.1 (< 1000), 1 (> 1000)
Retransmission/Analog Output:SPDT Relay
Retransmission/Analog Output Note:5 A SPDT relay @ 250 Vac resistive
Storage Temperature, Max:50 °C
Storage Temperature, Min:0 °C
Supply Power Note:9 Vdc, 200 mA (115 Vac adaptor included)
Supply Voltage:9 Vdc
Temperature Sensor Type:N/A
Thermocouple Type:J, K, T, E
Weight:374 g
Width:83 mm
