DwyerOmegaDMD4059-Series-Sig-Cond

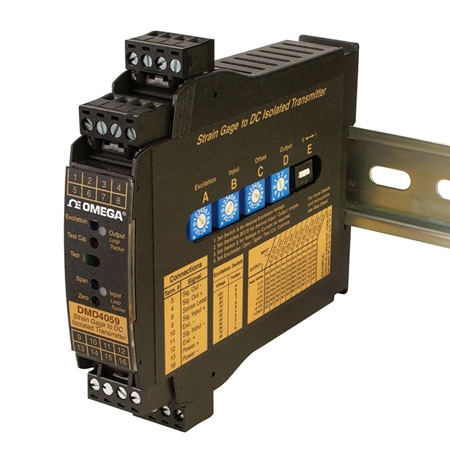

DMD4059
STRAIN GAGE TO DC TRANSMITTER
- 가격
- 1,063,820 원
- VAT 10%
- 106,382 원
- 총 금액
- 1,170,202 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 7 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Additional Features 1:Standard Voltage isolated
Adjustments:±5% Via Multi-Turn Potentiometer
CMRR:100 db min
Electrical Connection:Screw Terminal
Electrical Output:0 to 25 mA
Enclosure Ratings:IP40
Excitation Voltage:Selectable 0 to 10 Vdc
Height:117 mm
Impedance Input:200 kΩ typical
Input Range Note:Input Range: 100 to 10,000 Ω bridges @ 10 Vdc, drives up to four 350 Ω bridges @ 10 Vdc;Minimum: 0 to 5 mV range, 0.5 mV/V sensitivity;Maximum: 0 to 400 mV range, 40 mV/V sensitivity
Input Type:Voltage
Isolation:1200 Vrms minimum, 3-way isolation, power to input, power to output and input to output
Length:122 mm
Linearity:Output Linearity, Ripple and Noise: Better than ±0.1% of span, <10 mV rms ripple and noise
Mounting:DIN Rail 35 mm Standard
Number of Inputs:1
Offset:Zero Offset (Tare): ± 100% of span in 15 % increments
Operating Temperature, Max:60 °C
Operating Temperature, Min:-10 °C
Output Detail:Output Ranges: Voltage (10 mA max): 0-1 to 0-10 Vdc Bipolar Voltage (10 mA max): ±5 or ±10 Vdc Current: 0-2 mA to 0-25 mA Compliance, Drive @ 20 mA: 20V, 1000 Ω drive;current output can be selectively wired for sink or source Function Test Button: Sets output to test level when pressed. Adjustable 0 to 100% of span via potentiometer. Factory default is approx 50% of span Maximum Output: 10 Vdc @ 120 mA
Output Ripple:Better than ±0.1% of span, <10 mV rms ripple and noise
Output Signal:Current, Voltage
Output Value:Process
Power Consumption:2 to 5 W
Resistance Accuracy:Better than ±0.01% per 1 Ω change in leadwire resistance
Response Time:70 ms typical
Sensor/Transmitter Power:Up to 4- 350 Ω bridges @ 10 Vdc
Stability:±0.01% per °C, Thermal: Better than ±0.02% of span per °C
Supply Power Note:80 to 265 Vac, 50/60 Hz or 85 to 300 Vdc, 2 W maximum
Supply Power Type:AC/DC
Supply Voltage:80 to 265 Vac, 85 to 300 Vdc
Temperature Stability:±0.01% per/°C; Better than ±0.02% of span per °C
Voltage Measurement Range:0 to 400 mV
Voltage Output Range:0 to 10 Vdc
Weight:159 g
Width:22.5 mm
Wire Gauge:14 AWG
