DwyerOmegaDMD-475-Series-Sig-Cond

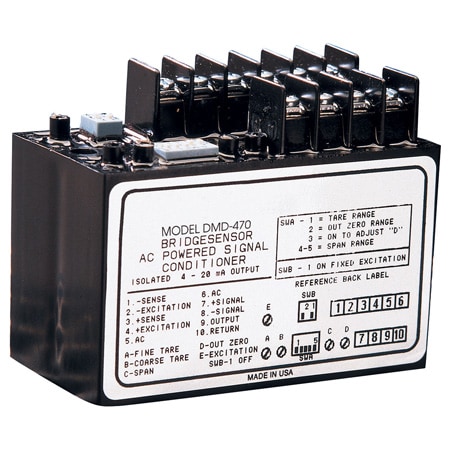

DMD-475
Isolated Signal Conditioners with Transducer Power up to 120 mA for Strain Gages, Load Cells and Transducers
- 가격
- 1,484,370 원
- VAT 10%
- 148,437 원
- 총 금액
- 1,632,807 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 5 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.15 %
Bandwidth:10 Hz (-3 dB)
Capacitance:60 pF
Compliance Voltage:20 Vdc
Current Output:5 mA
Electrical Output:0 to 10 Vdc
Excitation Voltage Note:Voltage Range: 5 to 10 Vdc Current Output: 120 mA max Line and Load Regulation: 0.02% max Output Noise: 1 mVrms max (120 Hz) Temp Coefficient: 60 ppm @ 10V, 100 ppm max
Gain Range:200 to 2000
Height:73 mm
Input Range:5 to 50 mV
Input Resistance:1000 MΩ
Input Type:Voltage
Isolation:AC Line: 1100 Vrms, 60 pF, Input to Output: 700 Vdc and 60 pF
Length:96 mm
Linearity:± 0.005%
Long Term Stability:Temperature: 0.005%/°C
Operating Temperature, Max:55 °C
Operating Temperature, Min:-25 °C
Output Signal:Voltage
Response Time:35 ms
Response Time Note:10 to 90% = 35 ms
Storage Temperature, Max:85 °C
Storage Temperature, Min:-25 °C
Supply Power:120 Vac
Supply Power Note:115 Vac ± 10 Vac standard or 220 Vac ± 10% 50/60 Hz optional
Supply Power Type:AC
Tare Adjustment:-3 to 25 mV
Weight:510 g
Width:51 mm
Zero Setting Adjustable Range:0 to 2 V
