DwyerOmegaSeries-DM-2000
DM-2105-LCD

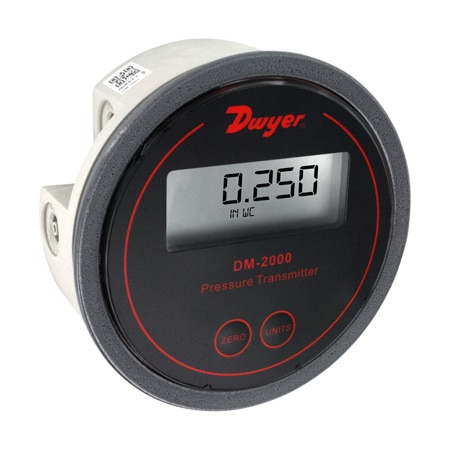

Differential pressure transmitter, range 2.00" w.c., 497 Pa, 50.8 mm w.c., 4.97 mbar, .497 kPa., light gray overlay with LCD display
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 8 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Accuracy:± 1 %
Accuracy Detail:± 1% FS, ± 30 Pa model ± 4% FS at 70°F
Additional Features 1:Light Grey Overlay Change
Applications:Filter Monitoring, HVAC
Display Note:3.5 digit LCD, 0.7" H
Display Type:LCD
Electrical Connection:Screw Terminal
Electrical Output:4 to 20 mA
Long Term Stability:± 1% FS/year
Loop Resistance:0 to 1250 Ω max
Material Construction Option:White Overlay
Materials, Wetted:Consult Factory
Measurement Pressure Type:Differential
Measurement Pressure, Max:2 inH₂O
Measurement Pressure, Min:0 inH₂O
Media Compatibility:Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases
Mounting Note:Vertical
Number of Digits:3.5
Number of Wires:2
Operating Temperature, Max:48.9 °C
Operating Temperature, Min:-6.67 °C
Output Signal:Current
Power Consumption:max 38 mA
Process Connection Size:1/8 in
Process Connection Type:Barbed Fitting
Proof Pressure:Up to 10 psi
Span Adjustment:Push Button
Supply Power Type:DC
Supply Voltage:10 to 35 Vdc
Thermal Effects:± 0.099% FS/°C
Thermal Effects Note:± 0.055% FS/°F (0.099% FS/°C), ± 30 Pa model ± 0.13% FS/°F (0.234% FS/°C).
Weight:136 g
Zero Setting Adjustable Range:Digital push-button
