DwyerOmegaSeries-DFMT
DFMT-25A

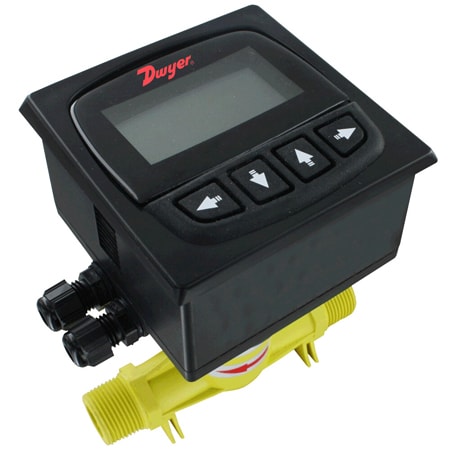

DFMT-25A 1"NPT DGTL FLOW XMTR
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 20 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Accuracy:± 1.5 %
Display Note:2.38 x 1.25˝ (60.33 x 31.75 mm) LCD, Totalizing Display Maximum: 9,999,999,999
Display Type:LCD
Electrical Connection:Removable Screw Terminal
Enclosure Ratings:IP65
Materials:ABS
Materials, Wetted:Ceramic, Fluorosilicone, PVDF
Media Compatibility:Alcohols, Compatible Liquids, Oils, Water
Operating Temperature, Max:149 °F
Operating Temperature, Min:-4 °F
Output Detail:Analog: 4-20 mA (750 Ω max. loop resistance); Pulse: NPN square wave output; Frequency: 0 to 2 kHz (adjustable); Pulse width: 0 to 1000 ms (adjustable)
Output Signal:Current, DC Pulse
Power Consumption:2 W
Pressure Limits:Up to 145 psi
Process Connection Size:1 in
Process Connection Type:NPT Male
Process Temperature, Max:194 °F
Process Temperature, Min:-4 °F
Repeatability:± 0.5%
Supply Power Type:DC
Supply Voltage:12 to 24 Vdc
Volumetric Flow Rate, Max:52.83 GPM
Volumetric Flow Rate, Min:2.2 GPM
Weight:1.23 lb
