DwyerOmegaDBCL130-Series

DBCL-130

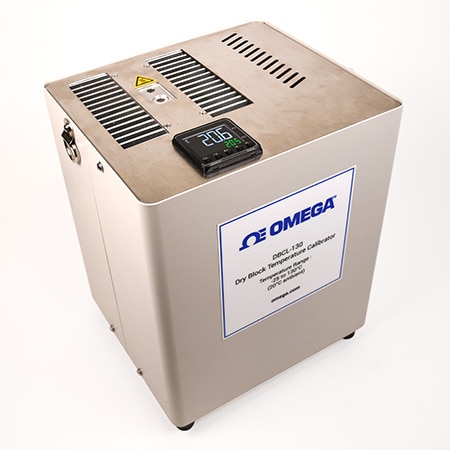

Portable Dry Block Calibrator -25°C (-13°F) to 130°C (266°F)

가격: 8,123,970 원

VAT 10%: 812,397 원

총 금액: 8,936,367 원

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Brand:OMEGA Engineering

Accuracy:± 0.4 °C, ± 0.4 °C

Accuracy Detail:±0.4°C (-20 to 130°C) ±0.7°F (-4 to 266°F), ±0.4°C (-20 to 130°C) ±0.7°F (-4 to 266°F)

Cool-Down Time Note:Cool down 20 to -20°C: 3 minutes (ambient of +20°C) Cool down 130 to 20°C: 2.5 minutes, Cool down 20 to -20°C: 3 minutes (ambient of +20°C) Cool down 130 to 20°C: 2.5 minutes

Data Interface:N/A, N/A

Dimensions Note:11 x 9 x 8 inches/279 x 229 x 203 mm *excluding the carrying strap, 11 x 9 x 8 inches/279 x 229 x 203 mm *excluding the carrying strap

Display Resolution:0.1°, 0.1°

Frequency:50/60 Hz, 50/60 Hz

Heat-Up Time Note:Heat up time -20 to 130°C: 5 minutes Heat up time 20 to 100°C: 2 minutes, Heat up time -20 to 130°C: 5 minutes Heat up time 20 to 100°C: 2 minutes

Height:279 mm, 279 mm

Length:203 mm, 203 mm

Operating Temperature, Max:40 °C, 40 °C

Operating Temperature, Min:5 °C, 5 °C

Power Consumption:200 W, 200 W

Probe Wells Details:Depth: 101 mm, Depth: 101 mm

Process Temperature Note:-25°C/-13°F to 130°C/266°F at an ambient of 20°C/68°F, -25°C/-13°F to 130°C/266°F at an ambient of 20°C/68°F

Process Temperature, Max:130 °C, 130 °C

Process Temperature, Min:-25 °C, -25 °C

Relative Humidity Note:Up to 95% relative humidity, non-condensing, Up to 95% relative humidity, non-condensing

Relative Humidity, Max:0.95, 0.95

Supply Voltage:100 to 240 Vac, 100 to 240 Vac

Temperature Overload Protection:Fan Cooling: Automatic, Fan Cooling: Automatic

Temperature Stability:±0.050°C(10 minutes), ±0.050°C(10 minutes)

Weight:6.8 kg, 6.8 kg

Well Type:N/A, N/A

Width:229 mm, 229 mm

문서 및 매뉴얼
