DwyerOmegaCYD211-CYD218E-CYD218S
CYD218S

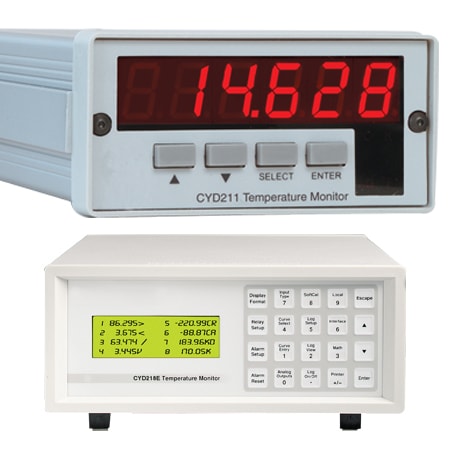

Cryogenic Digital Thermometers
- 가격
- 12,543,260 원
- VAT 10%
- 1,254,326 원
- 총 금액
- 13,797,586 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 9 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Additional Features 1:RS232 serial Interface, alarms, datalogging, printer support (IEEE-488, relays, and analog output)
Data Interface:IEEE-488, relays, analog output
Data Interface Note:RS232C (protocol and sample programs included)
Display Measuring Units:°C, K, Ohm, V
Display Type:LCD
Display Type Note:LCD display for each of 8 inputs simultaneously displayed, 1000 pixels
Form factor:Benchtop
Height:90 mm
Length:317 mm
Measurement Type:Temperature
Memory:1500
Memory Note:1500 point storage non-volatile memory or continuous to computer
Number of Inputs:8
Number of Measurements:8
Operating Temperature, Max:35 °C
Operating Temperature, Min:15 °C
Process Temperature, Max:800 K
Process Temperature, Min:1.4 K
Repeatability:± 10 mK
Sampling Rate:16 Hz (16 updates/second)
Supply Power Type:AC
Supply Voltage:100 Vac
Temperature Accuracy:± 0.3 °C
Temperature Accuracy Note:Class B, ± 0.3°C (at 0°C), 0.011 K
Temperature Sensor Type:RTD
Thermal Response Time:2 sec
Weight:0.65 kg
Width:217 mm
