DwyerOmegaSeries-CXA

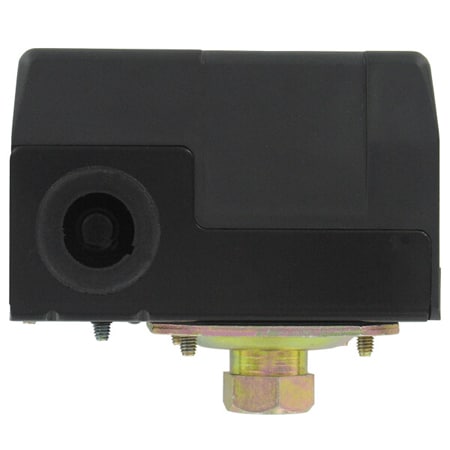

CXA-R3
Water pump pressure switch, NO, range 35-150 psig (2.4-10.3 bar), approx. adj. deadband 30-40 psig (2.1-2.8 bar), max. pressure 204 psig (14.1 bar).
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 17 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Applications:Pump Control
Compliance:CE
Deadband:30 to 40 psi
Enclosure Ratings:None
Materials, Wetted:Silicone, Stainless Steel, Steel
Measurement Pressure Type:Gauge
Measurement Pressure, Max:150 psi
Measurement Pressure, Min:35 psi
Media Compatibility:Consult Factory
Mounting Orientation:Not Position Sensitive
Operating Temperature, Max:140 °F
Pressure Limits:Up to 204 psi
Process Connection Size:1/4 in
Process Connection Type:NPT Female
Repeatability:± 5 psi
Set Point Adjustment:Internal Screw
Switch Rating:20 A @ 120 Vac, 12 A @ 240 Vac, 9.6 A @ 240 Vac (3 phase), 8.6 A @ 32 Vdc, 3.1 A @ 120 Vdc, 1.6 A @ 240 Vdc.ac
Switch Type:DPST Snap NO
Weight:0.75 lb
