DwyerOmegaSeries-CP-CN-CT-CX
CX8-M7C17D4E10N4

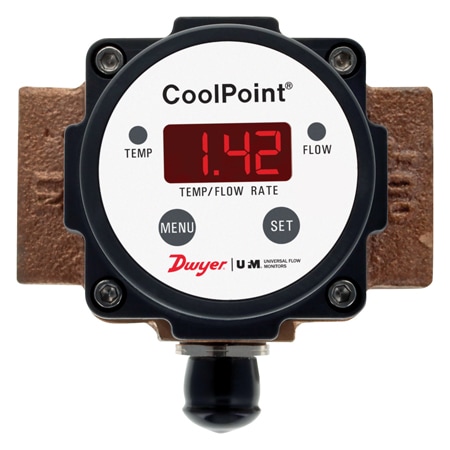

CX8-M7C17D4E10N4 COOLPOINT 1"
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 10 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Accuracy:Flow: ± 2%; Temperature: ± 2°F
Compliance:ETL
Display Note:3-digit or 4-digit LED (pipe sizes > 3˝), 0.3˝ (7.6 mm) digit height, Standard display orientation
Display Type:LED
Electrical Connection:Pigtail Leads
Enclosure Ratings:IP65, NEMA Type 4
K-Factor:100 pulses per gallon
Materials, Wetted:Brass, FKM, PEEK
Measurement Pressure Type:Gauge
Media Compatibility:Alcohols, Compatible Liquids, Oils, Water
Number of Digits:3,4
Operating Temperature, Max:210 °F
Operating Temperature, Min:35 °F
Output Detail:4-20 mA; 100 pulses per gallon (3-wire models only); 2˝, 3˝, and 4˝: 25 pulses per gallon
Output Signal:Current
Process Connection Type:Barbed Fitting
Proof Pressure:Up to 200 psi
Repeatability:± 0.25%
Response Time:450 ms
Supply Current:80 mA
Supply Power Note:10-30 Vdc @ 80 mA standard; 25 mA for 2 wire option; CP-V8: 2 AA alkaline batteries, not included (45 day battery life)
Supply Power Type:DC
Supply Voltage:10 to 30 Vdc
Turndown Ratio:10:1
Viscosity Range:15 cP
Volumetric Flow Rate, Max:50 GPM
Volumetric Flow Rate, Min:4 GPM
Weight:1.5 lb
