DwyerOmegaCT7300-Series
CT7310-NEMA-D

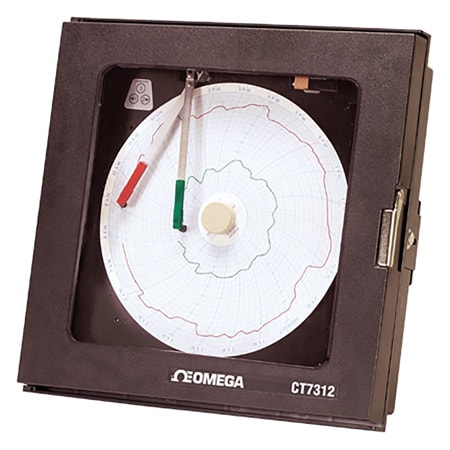

Economical 2-Pen Circular Process Recorder
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 103 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.5 %
Accuracy Detail:Chart Recording: ±0.5% of span (100-division span)
Alarm modes:Active High Output, Active Low Output, Adjustable, Band, High/Low, Manual reset
Approvals:CE
Battery Size and Type:Alkaline 9V
Battery life:48 hr
CMRR:>120 dB @ 60 Hz
Chart Diameter:254 mm
Chart Speed:Configurable—4, 8, 12, 24, 48 and 168 hours of rotation
Current Measurement Range:4 to 20 mA
Cutout Dimensions:323 x 323 mm
Deadband:Set at 2 units; activation is safe-sided
Display Type:LED
Enclosure Ratings:IP65, NEMA Type 4
Height:356 mm
Input Note:Input Filtering: Up to 120 sec;Input Isolation: PV inputs isolated from all alarm outputs
Length:97 mm
Material Construction Option:NEMA Type 4
Measurement Range Note:Thermocouple: J: -130 to 760°C, K: -130 to 1370°C, T: -200 to 400°C, R: 0 to 1650°C, S: 0 to1649°C, B: 100 to 1824°C RTD: -210 to 440°C Current: 4 to 20 mA Voltage: 0 to 5 Vdc
Measurement Type:Thermocouple, RTD, Current, Voltage
Mounting:Vertical Mount (±20 Degrees), Horizontal Mount (±10 Degrees)
Mounting Orientation:± 20 degrees of vertical, ± 10 degrees of horizontal
Number of Channels:2
Operating Temperature, Max:60 °C
Operating Temperature, Min:0 °C
Pen Type:Ink Style
Power Consumption:15 VA
RTD Type:100 Ω Pt Sensor
Relative Humidity:0 to 90% RH, non-condensing
Sensor Break Detection:Error Protection: De-Energized During Sensor Break; Sensor Break: <10 sec
Standard Limits of Error:Error Limit: Cold-Junction Compensation Error: ±0.2°C/°F @ 25°C, Ambient Temperature Error Limit: 0.01% of span per °C
Storage Temperature, Max:65 °C
Storage Temperature, Min:-40 °C
Supply Power Note:110/220 Vac, 50/60 Hz
Supply Power Type:AC
Supply Voltage:110/220 Vac
Switch Rating:1 A @ 120 Vac
Switch Rating Note:DPDT, 1.0 A @ 120 Vac resistive
Switch Type:DPDT
Temperature Measurement Range:J: -130 to 760°C, K: -130 to 1370°C, T: -200 to 400°C, R: 0 to 1650°C, S: 0 to1649°C, B: 100 to 1824°C, RTD: -210 to 440°C
Thermocouple Type:J, K, T, R, S, B
Vibration:0.3 to 100 Hz @ 0.2 g
Voltage Measurement Range:0 to 5 Vdc
Weight:3 kg
Width:356 mm
Wire Code Option:3- Wire
