DwyerOmegaCT7000-Series
CT7114

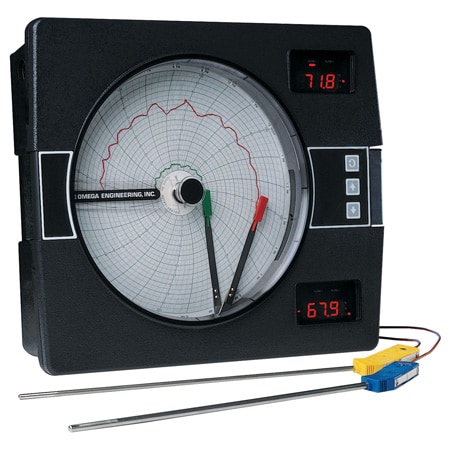

Single and Dual Pen Circular Recorder with Digital Display
- 가격
- 6,788,690 원
- VAT 10%
- 678,869 원
- 총 금액
- 7,467,559 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Alarm modes:Active High Output, Active Low Output, Adjustable
Battery life:up to 5 yr
CMRR:90 dB minimum; 24 Vac maximum for RTD input; 15 Vac maximum for other inputs
Chart Diameter:254 mm
Chart Note:Chart Span: Bottom and top of span, -9999 to 9999 units; Chart Drive: DC Stepper Motor; Chart Drive: Stepper Motor
Chart Speed:0.1 to 999.9 Hours
Control Output:On/Off
Current Measurement Range:4 to 20 mA
Cutout Dimensions:321 x 343 mm
Deadband:Recording: 0.3%
Display Note:Digital Displays: 2 possible: 1 per installed pen; (4) 7-segment digits, 14 mm (0.56”) high, red LEDs, automatic (-) positioning, decimal point positioning Keypad: Located on front cover, tactile feedback membrane keys, Display/Record Filter: 1 to 20 Scans. Alarm Display: 2 alarm indications possible per pen; ALRM1 and ALRM2; red LEDs; single ALRM indication provided for controller pens
Display Type:LED
EMC Standard:IEC 61000-4-2
Filter:1 to 20 Scans
Height:335 mm
LED Indicators:LED indicates Out 1, Out 2, Man, Ramp, Soak, Seg 1 through Seg 6, process units as applicable
Length:92 mm
Material Construction Option:Standard
Materials:Plexiglass
Measurement Range Note:Thermocouple: J: 0 to 760°C, K: 0 to 1360°C, T: -220 to 400°C, E: 0 to 750°C, N: 0 to 1300°C, R: 200 to 1650°C, S: 200 to 1650°C, B: 200 to 1800°C, C: 200 to 2300°C RTD: -140 to 400°C Current: 4 to 20 mA Voltage: 0 to 25 mV, 0 to 50 mV, 10 to 50 mV, 0 to 5 V, 1 to 5 V
Measurement Type:Thermocouple, RTD, Current, Voltage
NMRR:85 db @ 60 Hz or greater
Number of Channels:2
Number of Relays:4
Operating Temperature, Max:55 °C
Operating Temperature, Min:0 °C
Pen Type:Disposable Fiber tip
Power Consumption:25 VA
RTD Type:100 Ω Pt sensor; α= 0.00385
Recording Color:Pen 1: Red, Pen 2: Green
Relative Humidity:0 to 90% RH, non-condensing
Resolution:Pen Resolution: 0.15%
Response Time:20 sec
Sampling Rate:1 Scan/sec
Sensor Break Detection:Sensor Fault Detection: Displays “Hi” or “Lo” process input (10% above or below range) and sensor break “SnSr”; pen action on error condition is user configurable to 0 or 100% of chart span; on/off outputs go “off”; proportional outputs go to user-defined value from 0 to 100%
Standard Limits of Error:Error Limit: Measurement Error Limit: Thermocouple Types J, K, T, E, N and RTD: ±0.25% of reading + 1° @ 25°C (77°F); Type R, S, B, C Thermocouples: ±0.25% of span @ 25°C (77°F); mVdc and Vdc: ±0.25% of scaled span plus 1 least-significant digit Ambient Temperature Error Limit: 0.01% of span per °C (1.8°F) deviation from 25°C (77°F) Process Value Output Error Limit: ±0.5% of span Record Error Limit: ±0.5% of chart span or better, typically; ±1.0% of chart span maximum; Calibration Shift: Self-compensating for ambient temperature; all calibration values are stored in memory; Process Value Output Error Limit: ±0.5%; Record Error Limit: ±0.5%
Storage Temperature, Max:65 °C
Storage Temperature, Min:-40 °C
Supply Power Note:115 Vac ±10%, 50/60 Hz
Supply Power Type:AC
Supply Voltage:115 Vac
Switch Rating:2 A @ 115 Vac, 1 A @ 230 Vac
Switch Type:SPST
Temperature Measurement Range:J: 0 to 760°C, K: 0 to 1360°C, T: -220 to 400°C, E: 0 to 750°C, N: 0 to 1300°C, R: 200 to 1650°C, S: 200 to 1650°C, B: 200 to 1800°C, C: 200 to 2300°C, RTD: -140 to 400°C
Thermocouple Type:J, K, T, R, S, N, E, B, C
Vibration:0.5 to 100 Hz @ 0.2 g
Voltage Measurement Range:0 to 25 mV, 0 to 50 mV, 10 to 50 mV, 0 to 5 V, 1 to 5 V
Weight:9.1 kg
Width:384 mm
Wire Code Option:2- or 3- Wire
