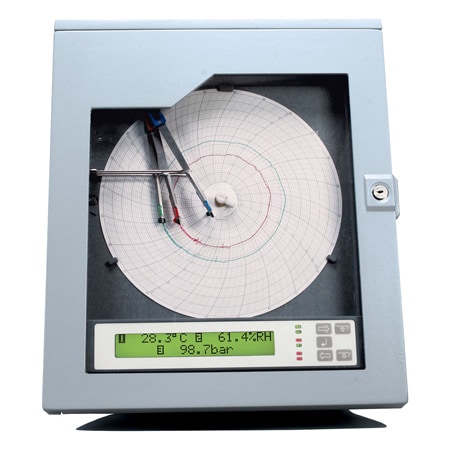

DwyerOmegaCT6100-Series
CT6103-PV
Circular Chart Recorders
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 10 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.2 %
Accuracy Detail:Thermocouple: ±0.25%, RTD, Low Range (-200 to 200°C): ±0.2°C, RTD, High Range (200 to 850°C): ±0.8°C, Voltage: ±0.2%, Current: ±0.2% Linearization: "T/C Types J, K, T, N, E: ±0.1°C, -50 to 200°C, ±1°C maximum, T/C Types R and S: ±0.2°C, -50 to 200°C, ±1°C maximum, T/C Type B: ±1°C maximum RTD: ±0.1°C, -200 to 850°C"
Additional Features 1:Transmitter Power Supply
Approvals:CE
Chart Diameter:244 mm
Chart Note:Chart Drive: DC Stepper Motor
Chart Speed:1 to 24 hours in steps of one hour, 2 to 31 days in steps of 1 day
Current Measurement Range:± 20 mA
Cutout Dimensions:288 x 356 mm
Data protection:Access by password, Internal hardware jumper lock, Lockable Door
Deadband:0 to 10%
Display Note:2 line x 20 character dot matrix liquid crystal with backlight and automatic temperature compensation; 9.6 mm (0.37") character height. Alarm Display: Relay status shown by red and green front panel LEDs
Display Type:LCD
Electrical Output:0 to 20 mA or 4 to 20 mA
Enclosure Ratings:IP55, NEMA Type 12
Height:396 mm
Input Note:Input Isolation: Optoelectronic on 2 and 3 input models 500 Vrms channel to-channel, 500 Vrms channel-to-ground
Input Protection:±50 Vdc; Snubber Network: 22 nF and 100 Ω across each contact
Input Resistance:Thermocouple: 10 MΩ;±2 mA: 200 Ω;±20 mA: 20 Ω;±2V, ±20V: >1 MΩ
Length:171 mm
Materials:Steel, GF Polyester, Acrylic
Measurement Range Note:Thermocouples to BS4937 (type B minimum temp 200°C) Current: ±2 mA, ±20 mA Voltage: ±2V, +20 Vdc
Measurement Type:Thermocouple, RTD, Current, Voltage
Mounting:Panel Mounting or Surface Mounting
Number of Channels:3
Number of Relays:6
Operating Temperature, Max:55 °C
Operating Temperature, Min:0 °C
Pen Type:Pen Lift
Pen Type Note:Powered, activated from front panel; chart fast time advance possible with pens raised
Power Consumption:max 25 W
RTD Type:100 Ω Pt sensor; α= 0.00385
Recording Color:Pen 1: Red, Pen 2: Green, Pen 3: Blue
Relative Humidity:0 to 90% RH, non-condensing
Resolution:Positioning Resolution: >0.1%
Response Time:4.5 sec
Sensor Break Detection:Thermocouple Burn-Out: Pull-Up or Pull-Down, Selectable; Sensor Fault Action: Software selectable from: high alarm/low alarm/deviation alarm/control relay (high)/control relay (low); relays de-energize in alarm state; assignable to any channel
Sensor/Transmitter Power:12/24 Vdc @ 25 mA
Span, Min:5°C thermocouples K, J, T, E, N and RTD; 50°C other thermocouple types, 50 mV, 200 mA
Standard Limits of Error:Error Limit: Cold-Junction Compensation Error: ±0.02°C/°C; Calibration Shift: ±10°C
Supply Power Note:115 Vac ±10%, 50/60 Hz
Supply Power Type:AC
Supply Voltage:115 Vac
Switch Rating:6 A @ 30 Vdc/250 Vac
Switch Rating Note:Type: SPDT; 30 Vdc or 250 Vac @ 6 A maximum; 150 W DC, 1660 Vac non-inductive
Switch Type:SPDT NO/NC, Selectable
Temperature Measurement Range:To BS 4937 - International thermocouple reference tables
Temperature Stability:±0.02% FS/°C
Thermocouple Type:J, K, T, R, S, N, E, B
Voltage Measurement Range:-2 to 20 Vdc
Weight:7.7 kg
Width:336 mm
Wire Code Option:3- Wire
