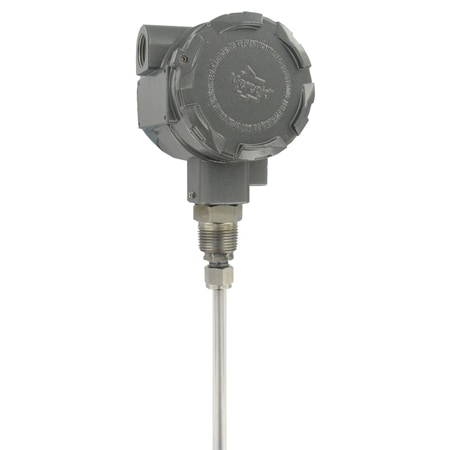

DwyerOmegaSeries-CRF2
CRF2-WR01T-072
CRF2-WR01T-072 STD 6' PROBE
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 7 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Accuracy:± 0.025 %
Accuracy Detail:±0.5 pF or ±0.25% of span, whichever is greater
Capacitance:0 to 2000 pF
Current Output:4 to 20 mA
Electrical Connection:1/2 in NPT female Conduit with Screw Terminal block
Enclosure Ratings:IP66, NEMA Type 4X
Materials, Wetted:316 Stainless Steel, FEP, PVC
Media Compatibility:Acid Solutions, Alcohol, Bases, Cement Powder, Conductive Liquids, Coolants, Corrosive Liquids, Dry Bulk Solids, Dry Powder, Flour, Grain, Mud, Oil, Ore Suspensions, Powders, Saltwater, Sand, Slurries, Water-based fluids
Mounting Orientation:Vertical
Number of Wires:2
Operating Temperature, Max:185 °F
Operating Temperature, Min:-40 °F
Output Signal:Current
Probe Length:72 in
Probe Type:Rod
Process Connection Size:3/4 in
Process Connection Type:NPT Male
Process Temperature, Max:250 °F
Process Temperature, Min:-40 °F
Proof Pressure:Up to 100 psi
Protection:Spark/Static Protection: 106 Ω Dissipation Resistance with Spark Gap, Surge Current: 100 A max
Repeatability:±0.25 pF/ ±0.1% of span
Repeatability Note:±0.25 pF or ±0.1% of span, whichever is greater
Response Time:0.5 s
Sensitivity:0.15 pF
Span, Min:8 pF
Supply Power Type:DC
Supply Voltage:12 to 35 Vdc
Weight:3.6 lb
Weight Note:6' rod type: 3.6 lb
