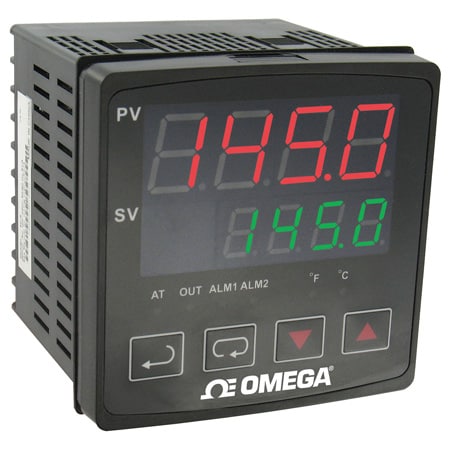

DwyerOmegaCN730-Series
CN732
1/4 DIN TEMP CONTROLLER
- 가격
- 324,890 원
- VAT 10%
- 32,489 원
- 총 금액
- 357,379 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.25 %
Accuracy Detail:± 0.25% span, ± 1 least significant digit
Control Output:DC Pulse
Cutout Dimensions:92 × 92 mm
Data Interface:RS485 Modbus
Depth Behind Panel:79.2 mm
Display Type:4 Digit LED
Display Type Note:Two 4-digit, 7-segment, LEDs PV: Red, 19 mm H (0.75") SV: Green, 12.7 mm H (0.5")
Enclosure Ratings:IP66
Form factor:1/4 DIN
Height:96 mm
Input Type:Thermocouple, RTD, Thermistor
Length:15.8 mm
Measurement Type:Temperature
Measuring Range:Type B: 100 to 1800°C Type S: 0 to 1700°C Type R: 0 to 1700°C Type N: -200 to 1300°C Type E: 0 to 600°C Type T: -20 to 400°C and -200 to 400°C Type J: -20 to 400°C and -100 to 850°C Type K: -200 to 1300°C and -200 to 500°C Type L: -200 to 500°C Type U: -200 to 800°C Pt100Ω RTD: 0 to 100°C, -20 to 500°C, -200 to 600°C
Memory Backup:Non-Volatile
Number of Control Outputs:1
Number of Inputs:1
Operating Temperature, Max:50 °C
Operating Temperature, Min:0 °C
Output Detail:DC Pulse;14V, 10 to -20% (max 40 mA)
Output Signal:DC Pulse
Supply Power Note:100 to 240 Vac, 50/60 Hz
Supply Power Type:AC
Supply Voltage:100 to 240 Vac
Weight:425 g
Width:96 mm
