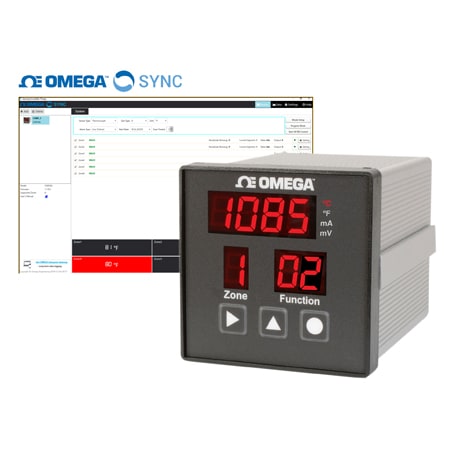

DwyerOmegaCN616A-Series
CN616A
6 CH CONTROLLER, AC
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 60 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
A/D Conversion:24-bit Sigma Delta
Accuracy:± 1 mV
Accuracy Detail:± 1 mV
Additional Features 1:2 Alarm Outputs
Approvals:ECCN: EAR99 Safety: 2014/35/EU EMC: 2014/30/EU RoHS: 2011/65/EU UL File No: E209855 UL/cUL Listed
Channel Display Time:1 to 99 sec
Control Output:Alarm Relay
Cutout Dimensions:92 × 92 mm
Data Interface:RS232
Data Interface Note:Selectable RS232 / RS485 Modbus RTU
Depth Behind Panel:140 mm
Diameter:135 mm
Display Size:15 mm (0.60 in)
Display Type:Dual 3.5 Digit LED
Display Type Note:3.5 Digit Dual Display
Electrical Output:4 to 20 mA, 0 to 1 Vdc
Enclosure Ratings:NEMA Type 1
Form factor:1/4 DIN
Frequency:50/60 Hz
Input Control Signal:120/240 Vac, 50/60 Hz
Input Type:Thermocouple, RTD, Voltage, Current
Input Type Note:TC: J, K, T, E, R, S, B, C, N RTD: 2 wire PT100, 0.00385 CU10, 0.00427 NI120, 0.00672
Length:95 mm
Measurement Type:Current, Temperature, Voltage
Measuring Range:Process Voltage: 0 to 1000 mV Process Current: 0 to 24.00 mA Thermocouple Type J: -150 to 0°C and 0 to 1200°C Type K: -150 to 0°C and 0 to -1372°C Type T: -150 to 0°C and 0 to 400°C Type E: -150 to 0°C and 0 to 1000°C Type R: -50 to 0°C and 0 to 1788°C Type S: -50 to 0°C and 0 to 1768°C Type B: 150 to 700°C and 700 to 1820°C Type C: 0 to 2320°C Type N: -150 to 0°C and 0 to 1300°C RTD (2 wire) Pt, 0.00385, 100 Ω: -200 to 850°C Cu, 0.00427, 10 Ω: -200 to 260°C Ni, 0.00672, 120 Ω: -80 to 260°C
Number of Inputs:6
Number of Outputs:6
Operating Temperature, Max:70 °C
Operating Temperature, Min:-20 °C
Output Detail:6 Common Drain DC Pulse Outputs Switches up to 36Vdc and 1A, 5Vdc @25mA per channel
Power:AC Units: 2.3k Vac (3.2k Vdc),Power to Alarm Relay: 2.3k Vac (3.2k Vdc),Power to Serial: 2.3k Vac (3.2k Vdc),Input to Serial: 500 Vac (720 Vdc)
Power Consumption:3 W
Ramp and Soak:Multiple Ramp & Soak
Resolution:1°, 1 mV, 0.01 mA
Scan Rate:400 ms
Storage Temperature, Max:85 °C
Storage Temperature, Min:-40 °C
Supply Power Type:AC
Supply Voltage:120/240 Vac
Weight:725 g
Width:95 mm
