DwyerOmegaCMDP-Series
CMDP-P

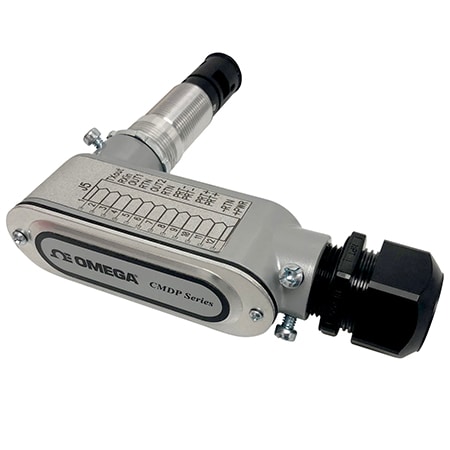

Pipe Mounted Chilled Mirror Hygrometer (Dewpoint only)
- 가격
- 3,700,220 원
- VAT 10%
- 370,022 원
- 총 금액
- 4,070,242 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.5 °C (± 0.9 °F)
Additional Features 1:NIST Traceable
Air Velocity, Max:900 m/mn
Data Interface:RS232
Dew Point Temperature Note:Dew Point -20°C (@ 25°C) to 60°C (non-condensing) Dew Point -40°C (@ 0°C) Temperature probe: (optional) - 40°C to 120°C
Dew Point Temperature, Max:60 °C
Dew Point Temperature, Min:-20 °C
Electrical Output:4 to 20 mA
Materials, Wetted:Anodized Aluminum, Nickel
Measurement Pressure, Min:0 psi
Measurement Type:Dew Point
Mounting Orientation:Pipe Mount
Operating Temperature, Max:120 °C
Operating Temperature, Min:-40 °C
Output Detail:(2) 4 to 20mA output at 24Vdc (configurable). Default settings: - 20°C to 60°C (unless specified on purchase order. Analog Output scaled range Dew Point (4- 20mA) User Selectable: 2) 4-20mA -24 Vdc (configurable) Factory set-both outputs, -20C to 60C (unless specified on order)
Pressure Limits:Up to 29 psi
Repeatability:± 0.05°C
Resolution:0.0001
Supply Power Type:DC
Supply Voltage:24 Vdc
Temperature Measurement, Max:60 °C
Temperature Measurement, Min:-40 °C
Weight:5 lb
