DwyerOmegaSeries-CLS2
CLS2-W11RK1-006

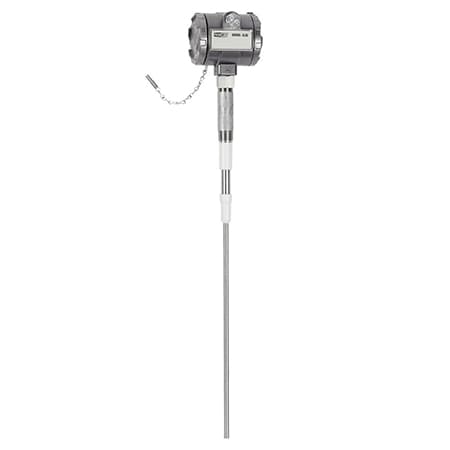

Capacitive level switch, weatherproof, 6" probe
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 7 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Applications:Chemical Refineries, Chemicals, Food and Beverage
Compliance:cULus
Electrical Connection:1/2 in NPT female Conduit with Screw Terminal block
Electrostatic Discharge:10 M Ω
Enclosure Ratings:IP66, NEMA Type 4X, Weatherproof
Materials, Wetted:316 SS, Polyvinylidene Fluoride
Measurement Pressure, Max:365 psi
Media Compatibility:Bulk, Liquids, Powders
Mounting Orientation:Horizontal, Vertical
Operating Temperature, Max:185 °F
Operating Temperature, Min:-4 °F
Power Consumption:2.8 W
Probe Length:6 in
Probe Type:Standard rod: 316 SS, .375˝ diameter
Process Connection Size:3/4 in
Process Connection Type:NPT Male
Process Temperature, Max:250 °F
Process Temperature, Min:-40 °F
Response Time:0.2 s
Sensitivity:8 selectable settings, 1, 2, 4, 6, 8, 10, 14, 20 pF
Sensor Break Detection:Switch selectable, high/low
Supply Power Type:AC
Supply Voltage:12 to 240 VAC/DC
Switch Rating:8 A @ 12/240 VAC, 30 VDC
Switch Type:DPDT
Time Delay:0 to 60 sec
Weight:2 lb
