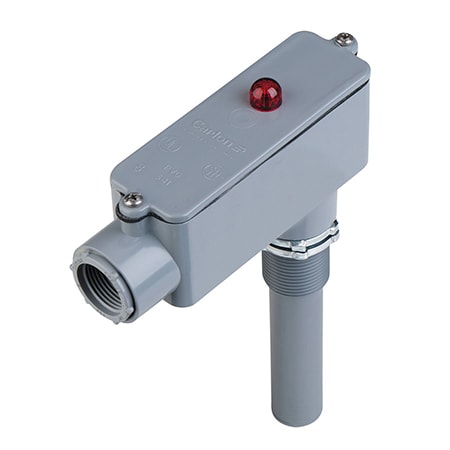

DwyerOmegaModel-CLS1
CLS1
Capacitance level switch.
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 18 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Applications:Bins, Chutes, High or Low level detection, Hoppers, Silos, Tanks
Electrical Connection:3/4 in NPT female Conduit with Screw Terminal block
Enclosure Ratings:Dust Tight, IP66, NEMA Type 4X, Water Resistant
Materials, Wetted:CPVC
Media Compatibility:Liquids, Slurries, Solids
Mounting Orientation:Horizontal, Vertical
Operating Temperature, Max:185 °F
Operating Temperature, Min:-40 °F
Power Consumption:1.5 VA
Process Connection Size:1 in
Process Connection Type:NPS Male
Process Temperature, Max:240 °F
Process Temperature, Min:-40 °F
Sensitivity:Adjustable to < 1 pF
Sensor Break Detection:Switch selectable, high/low
Supply Power Type:AC
Supply Voltage:120 Vac
Switch Rating:5 (8) A @ 250 Vac
Switch Type:SPDT NO/NC, Selectable
Time Delay:1 to 30 s
Weight:2 lb
